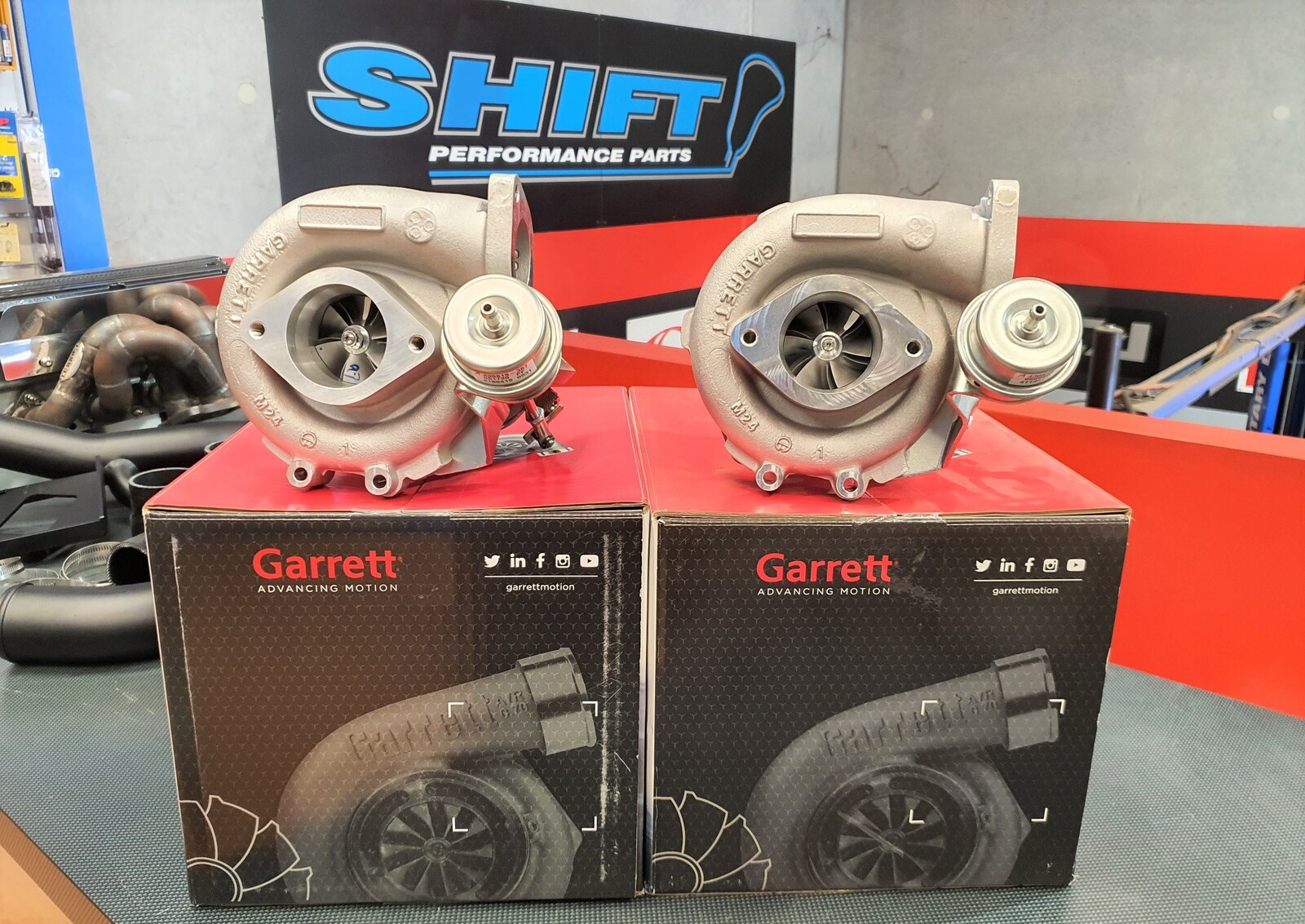

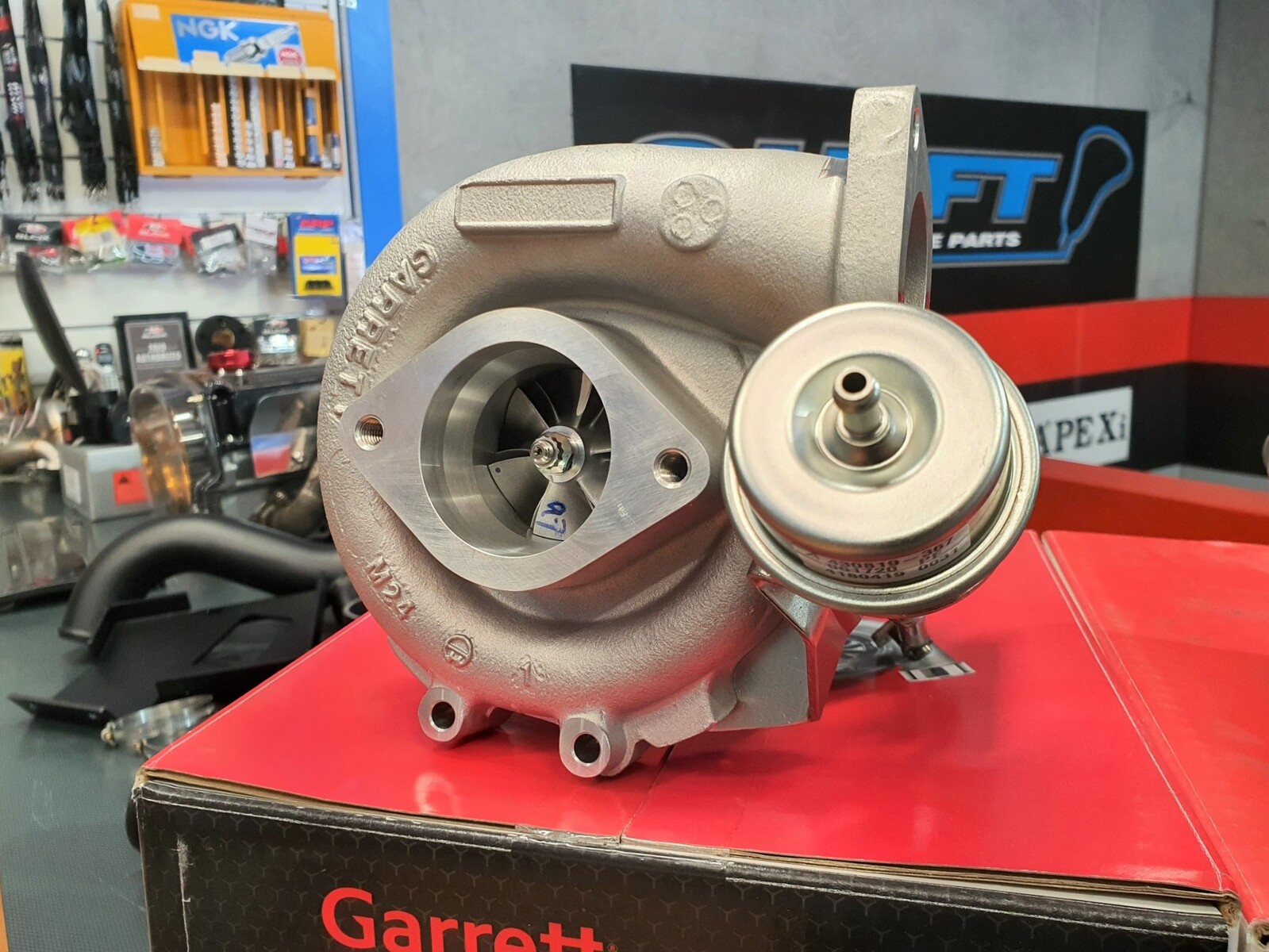

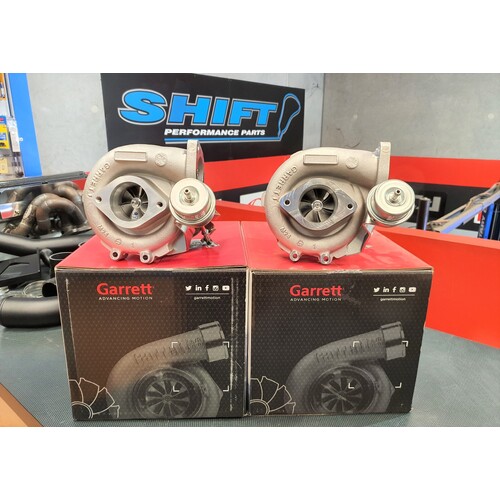

GT2860R GTR Ball Bearing Turbo 0.64 A/R


Model Number: GT2860R (Product Code: 836026-5005S)

  • Suits R32, 33, 34 GTR Direct Bolt-on
  • Approx Horsepower Range for Engine Capacity: 250-320Hp (1.6L-2.5L)
  • CHRA (core): 835998-5006S
  • Compressor Housing Air Ratio: 0.60
  • Compressor Wheel Inducer Size (mm): 47.22
  • Compressor Wheel Trim (mm): 62
  • Turbine Wheel Exducer Size (mm): 46.95
  • Turbine Wheel Trim (mm): 76
  • Turbine Housing & Air Ratio Size: 0.64
  • Turbine Housing Inlet port: Single
  • Integral Wastegate: YES
  • Actuator Pressure (psi/kpa): 15.59 / 107.5
  • Water Cooled Centre Housing: YES
  • Ball Bearing: YES


Product Notes:

Aftermarket oil drains will be required, which we offer to match these Turbochargers with the factory oil drain hoses (see related items).

This Turbocharger is a direct bolt-on replacement for the Nissan RB26DETT (Skyline GTR R32/R33/R34, Stagea 260RS)

These are known as the R32 Bathurst Spec Turbochargers, more suited to engines with cylinder head modifications (ie: drop in cams, porting etc).





SKU 836026-5005S
Brand Garrett
Shipping Weight 8.0000kg
Shipping Width 0.520m
Shipping Height 0.240m
Shipping Length 0.320m
Shipping Cubic 0.039936000m3
