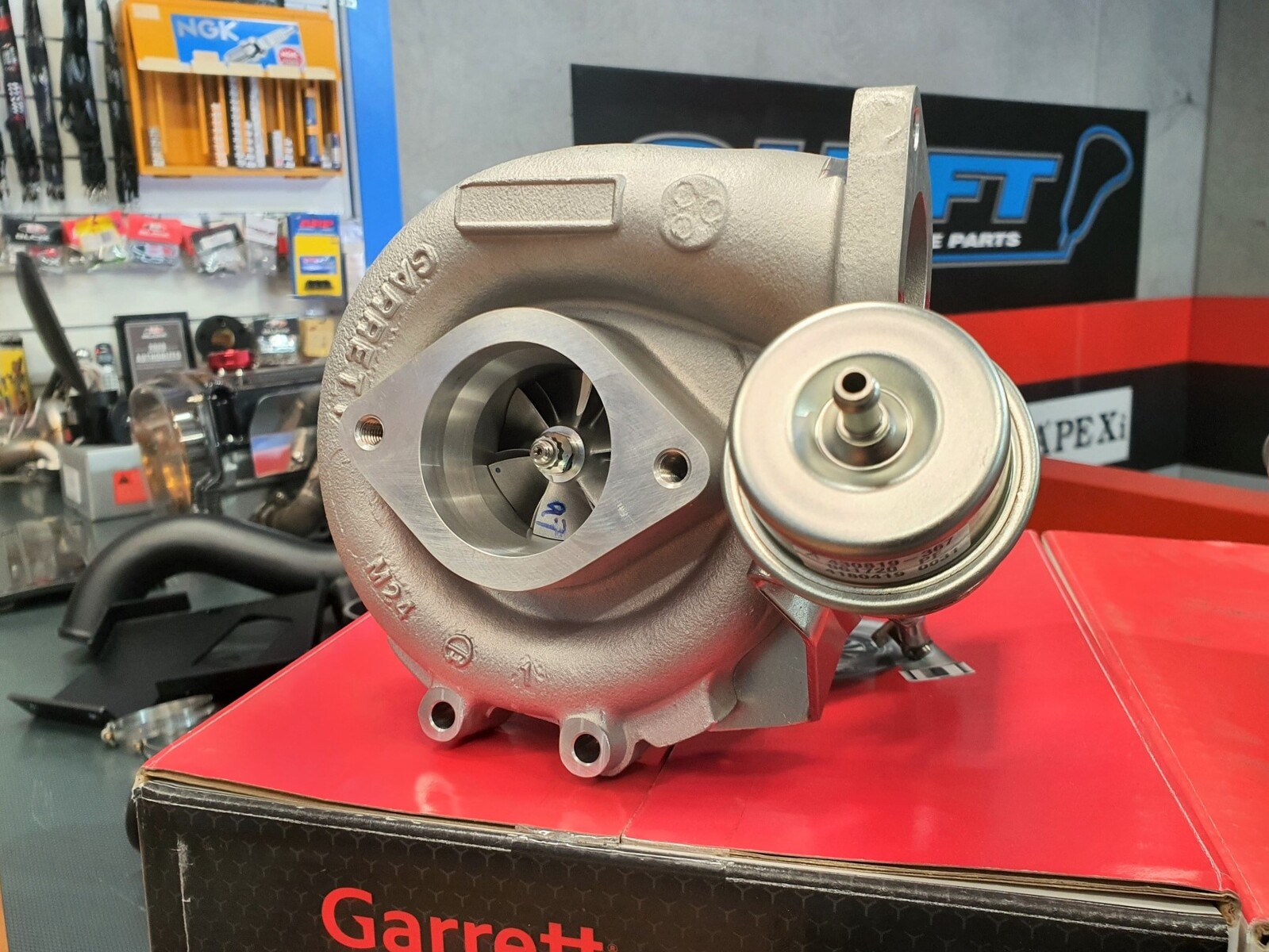

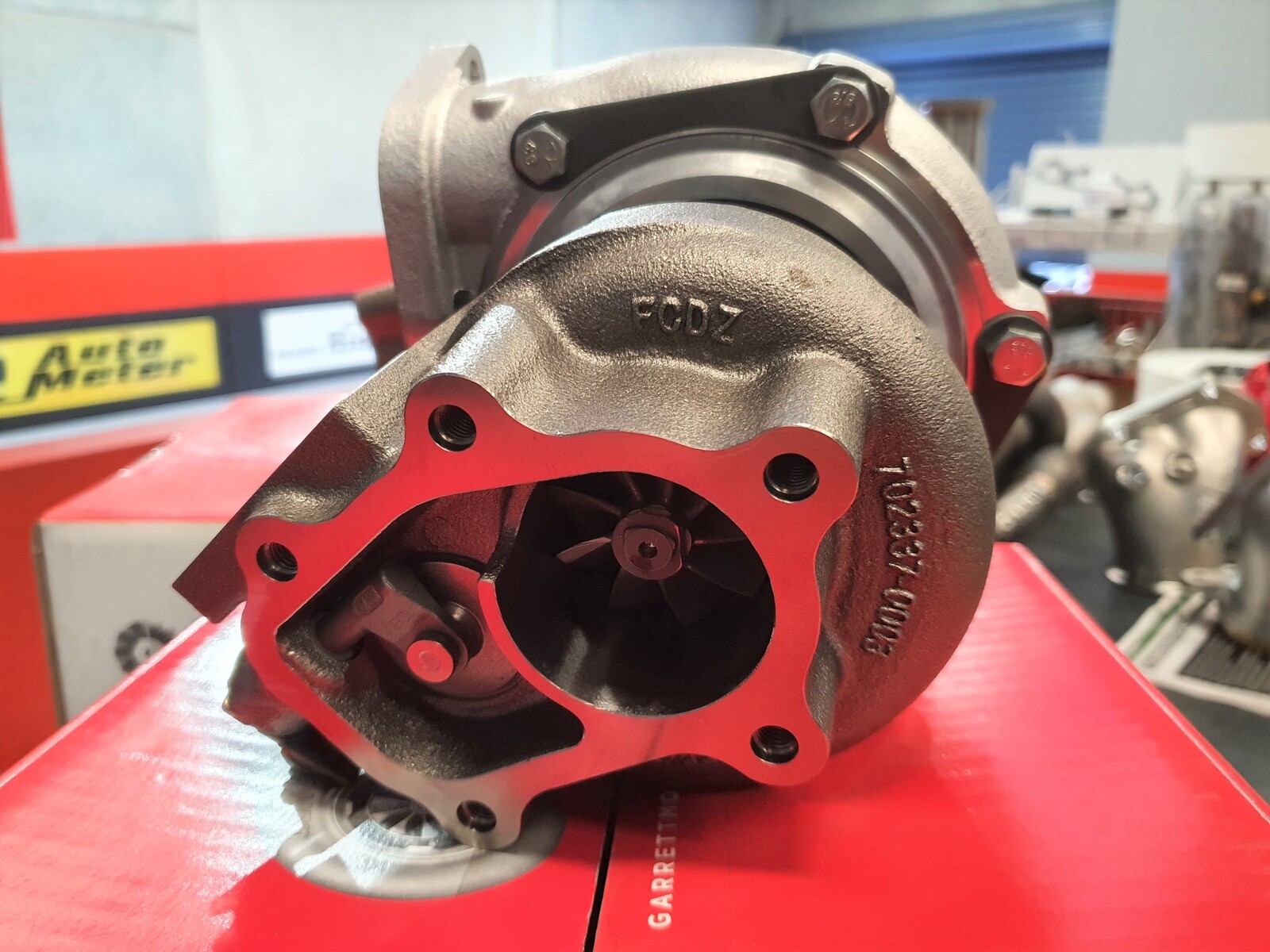

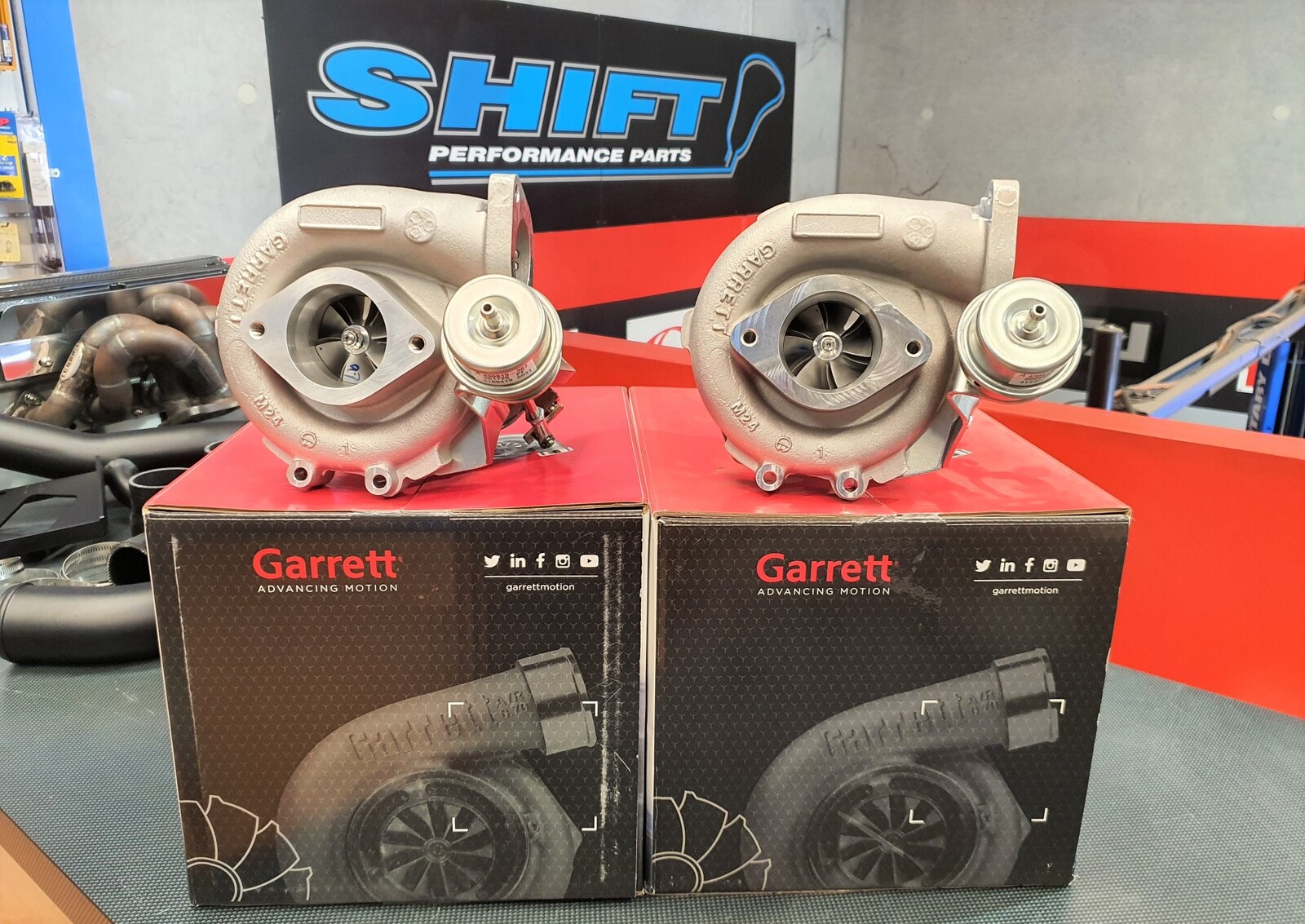

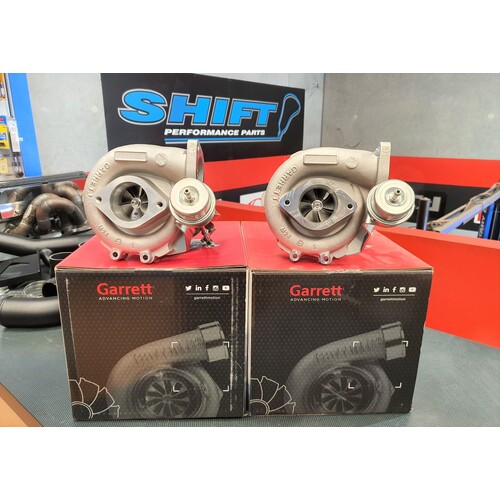

Garrett GT2860R -7 Ball Bearing Turbos - Suits Nissan R32, R33, R34 GTR, 260RS Stagea
GT2860R -7 GTR Ball Bearing Turbo 0.64 A/R
Model Number: GT2860R -7 (Product Code: 836026-5004S)
- Nissan R34 GTR N1
- Suits R32, R33, R34 GTR, Stagea 260RS
- Approx Horsepower Range for Engine Capacity: 250-320Hp (1.6L-2.5L)
- CHRA (core): 835998-5003S
- Compressor Housing Air Ratio: 0.42
- Compressor Wheel Inducer Size (mm): 44.59
- Compressor Wheel Trim (mm): 55
- Turbine Wheel Exducer Size (mm): 42.40
- Turbine Wheel Trim (mm): 62
- Turbine Housing & Air Ratio Size: 0.64
- Turbine Housing Inlet Port: Single
- Integral Wastegate: YES
- Actuator Pressure (psi/kpa): 13.93 / 96.00
- Water Cooled Centre Housing: YES
- Ball Bearing: YES
Product Notes:
Aftermarket oil drains will be required, which we offer to match these Turbochargers with the factory oil drain hoses (see related items).
This Turbocharger is a direct bolt-on replacement for the Nissan RB26DETT (Skyline GTR R32/R33/R34, Stagea 260RS)
These are known as the R32 Bathurst Spec Turbochargers, more suited to engines with cylinder head modifications (ie: drop in cams, porting etc).
(836026-5004S)
SKU | 836026-5004S |
Brand | Garrett |
Shipping Weight | 8.0000kg |
Shipping Width | 0.520m |
Shipping Height | 0.240m |
Shipping Length | 0.320m |
Shipping Cubic | 0.039936000m3 |
