Dedicated Diesel Boost Controller For Non-VNT (Variable Vane) Turbos

  • 50psi capability

  • Display boost in psi, BAR, kPa, or EGT in °F or °C

  • Closed-loop boost control strategy

  • 6 individually programmable boost presets

  • Scramble boost feature with remote switching

  • Peak boost recall feature

  • Auxiliary input (active scramble/boost preset)

  • Over-boost/over-temp warning

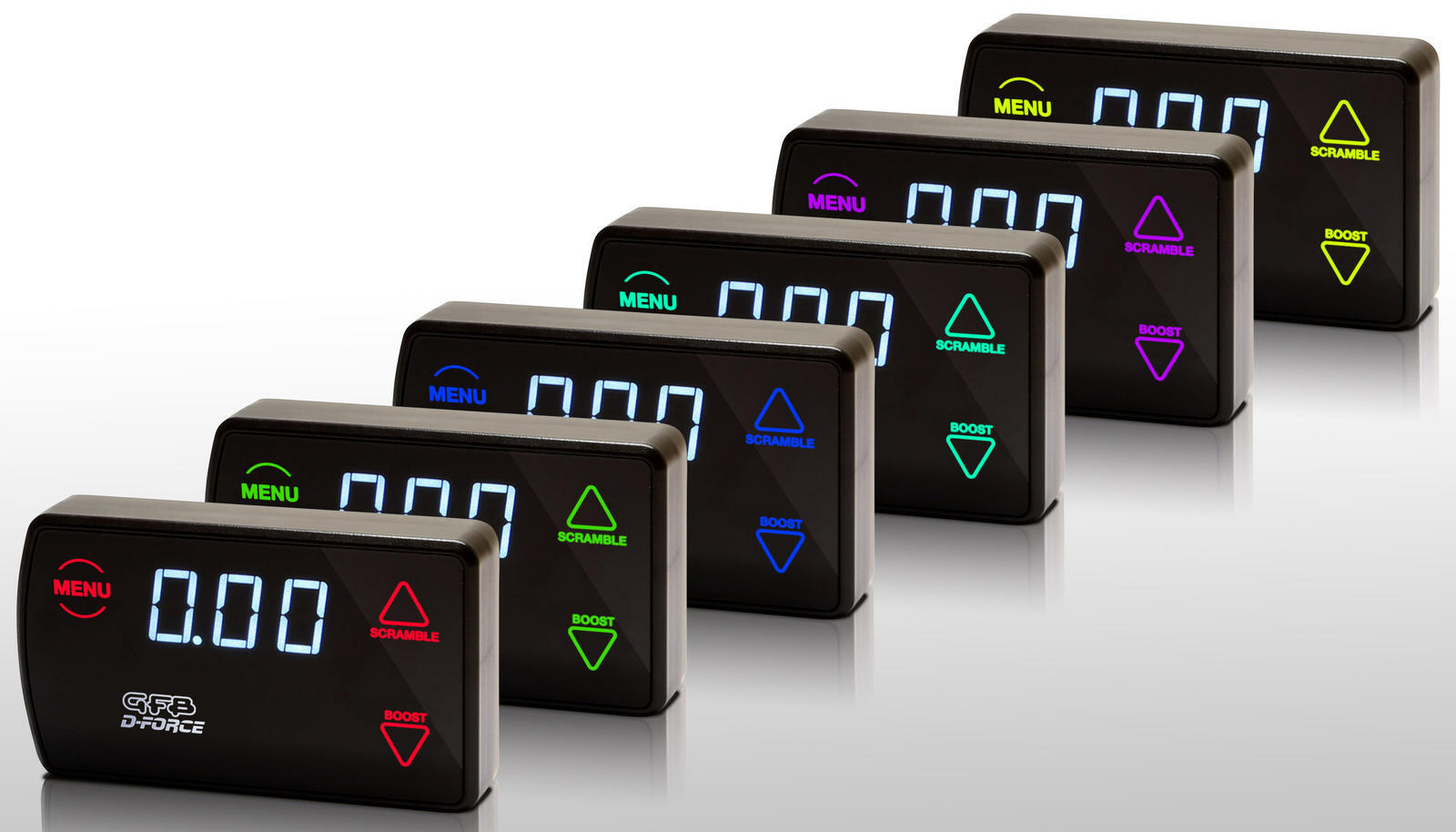

  • Touch screen interface with simple menu navigation

  • Choose your screen colour

Control and display boost pressure, the GFB D-Force gives you the ultimate control of your boost!*

With EGT Plugin Kit to monitor EGT (Exhaust Gas Temperature) and adds critical exhaust temperature display for a seamless integrated solution.

Easy to install and use, the D-Force gives you ultimate control of your boost pressure!*

Want to adjust boost for towing? Change it if EGT gets too high? Have multiple settings for different driving conditions? Bring boost on earlier or hold it longer? The D-Force can do all of this and more! Using a unique boost control strategy, The D-Force lets you adjust the boost rise rate, peak boost, and closed-loop correction. There are 6 boost presets (plus an extra one dedicated to the scramble feature) that you can set up with different boost parameters for different driving conditions, and then activate them on-the-fly or at the press of a button. The unique scramble feature can be set up for a variety of purposes. It can raise or lower boost when activated with the screen button, or via the auxiliary input using a switch, button, or ECU output.

For example, you could use it to lower boost pressure for safety by connecting it to an existing warning light, or instantly access high boost by pressing a button or flipping a switch.

The D-Force can also display Exhaust Gas Temperature (in °F or °C) and has a user-adjustable warning. This feature requires the EGT plugin module, which includes a stainless steel EGT probe and weld-on exhaust bung, along with the module to connect it to the D-Force wiring loom. The D-Force kit is available with or without the EGT plugin module, and the module is also available separately.

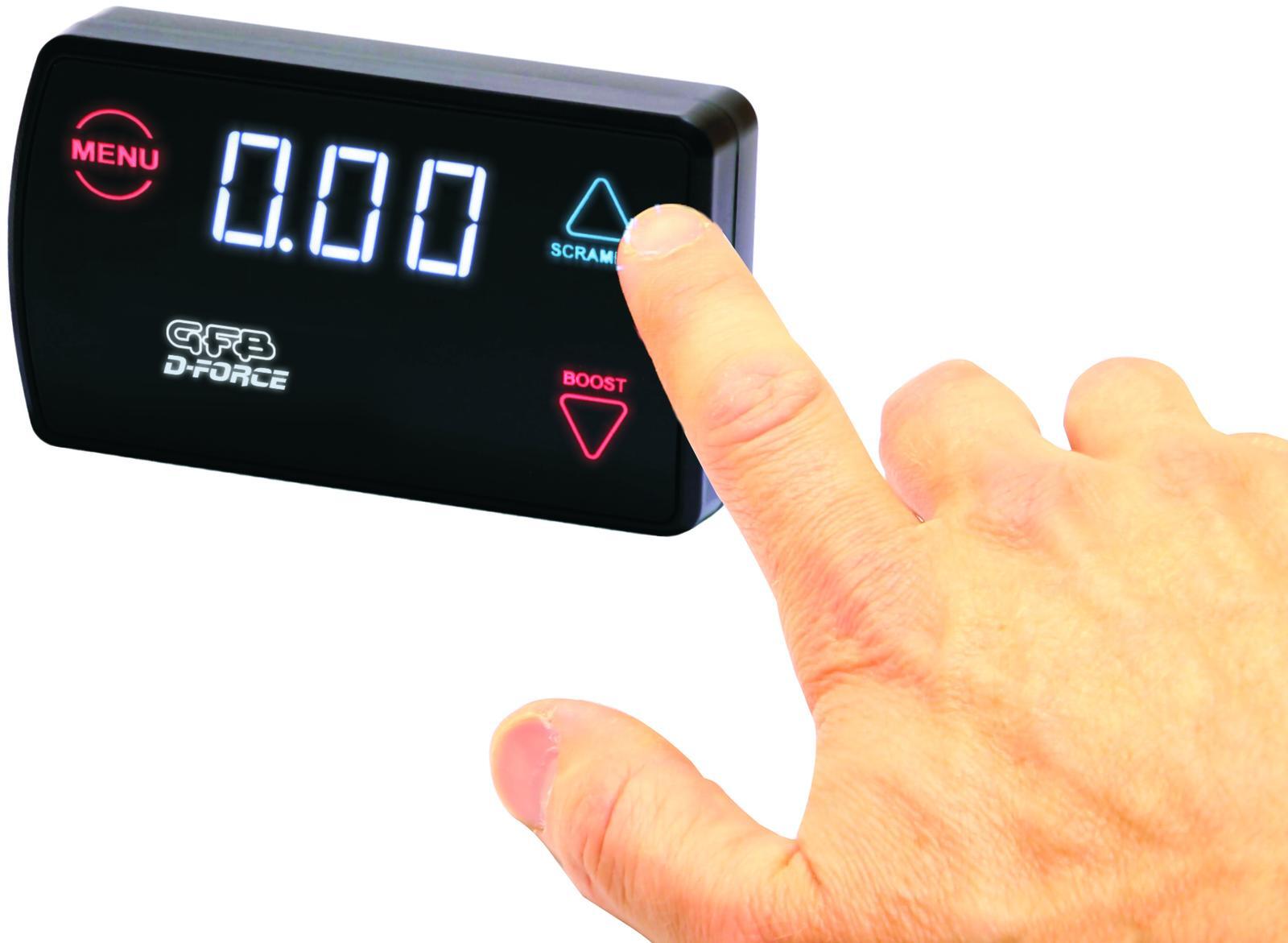

The controller interface is easy to use with touch-buttons and one touch menu navigation. The boost pressure units can be displayed in psi, bar, kPa, and the peak recall feature lets you see your peak boost after each boost event.

Suits:

  • Toyota Surf KZN130 93-95 2.4L & 3.0L LN_ 66kw Diesel AWD Closed Off-Road Vehicle 09/88-12/98

  • Toyota Surf KZN130 93-95 2.4L & 3.0L KZN_ 92kw Diesel AWD Closed Off-Road Vehicle 08/93-07/97

  • Toyota Landcruiser HZN75 HZJ75,HZJ79 96kw Diesel AWD Closed Off-Road Vehicle 01/90-02/07

  • Toyota Landcruiser HDJ100 '00-'07 HDJ100 150kw Diesel AWD Closed Off-Road Vehicle 10/00-10/07

  • Toyota Landcruiser HDJ80 '90-'97 HDJ80 123kw Diesel AWD Closed Off-Road Vehicle 01/90-12/97

  • Toyota PRADO KZJ120 1KZ-TE '02-'06 KZJ120 92kw Diesel AWD Closed Off-Road Vehicle 09/02-02/07

  • Toyota Hilux KZN165 & KZN205 '97-'05 1KZ-T KZN165 87kw Diesel AWD Cab Chassis 08/97-08/05

  • Toyota Hilux KZN165 & KZN205 '97-'05 1KZ-T KZN165 85kw Diesel AWD Ute 12/99-04/05

  • Nissan Patrol Y60 2.8L & 4.2L '88-'97 Y60, GR, GQ 85kw Diesel AWD Closed Off-Road Vehicle 09/88-06/97

  • Nissan Patrol Y60 2.8L & 4.2L '88-'97 Y60 85kw Diesel AWD Cab Chassis 01/94-12/97

  • Nissan Patrol Y60 2.8L & 4.2L '88-'97 Y60, GR, GQ 85kw Diesel AWD Closed Off-Road Vehicle 11/88-06/97

  • Nissan Patrol Y61 TD42 '98-'03 TY61, GU, Y61 114kw Diesel AWD Cab Chassis 02/99-02/12

  • Nissan Patrol Y61 TD42 '98-'03 TY61, GU, Y61 91kw Diesel AWD Cab Chassis 02/99-02/12

  • Mitsubishi Galant EA6W '96-'03 EA_ 66kw Diesel FWD Wagon 09/96-10/03

  • Mitsubishi Pajero '90-'99 2.5L 4D56 NH,NJ,NK,NL 73kw Diesel AWD Closed Off-Road Vehicle 12/90-10/99

  • Mitsubishi Triton MK '96-'07 2.5L 4D56TD K7_T, K6_T, MK 73kw Diesel AWD Ute 06/96-12/07

  • Mitsubishi Pajero NM/NP '00-'06 4D56T NM,NP 73kw Diesel AWD Closed Off-Road Vehicle 04/00-12/06



(3007)

SKU 3007
Brand GFB
Shipping Weight 0.5000kg
Shipping Width 0.200m
Shipping Height 0.350m
Shipping Length 0.100m
Shipping Cubic 0.007000000m3
