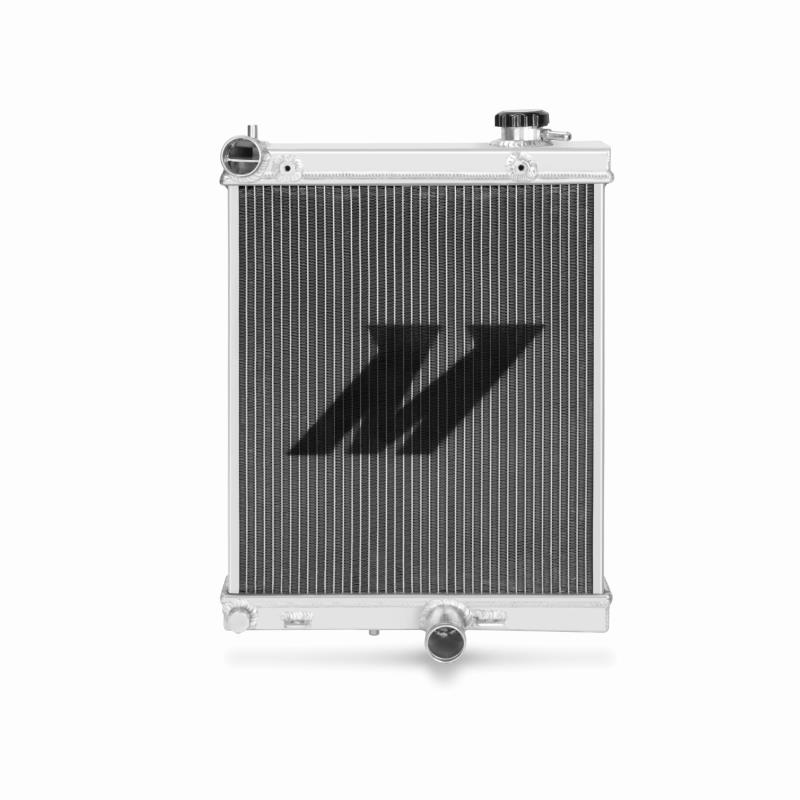

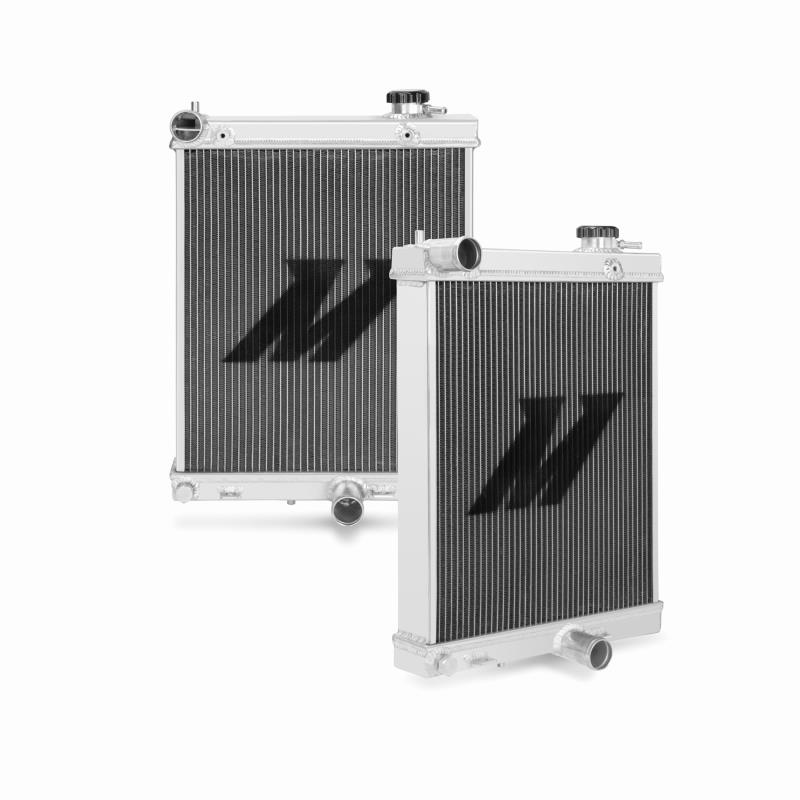

Direct fit for the 2001–2007 Mitsubishi Lancer Evolution
Half-size design provides clearance for large twin-scroll and forward-facing turbocharger setups
All-aluminium construction with TIG-welded end tanks.



2.05" thick brazed aluminium core provides optimal cooling and superior durability
Internal baffle provides exceptional fluid dispersion throughout the core and optimal cooling efficiency



Applicable for use with stock or Mishimoto silicone radiator hoses
Includes mounting points for stock fan shroud.

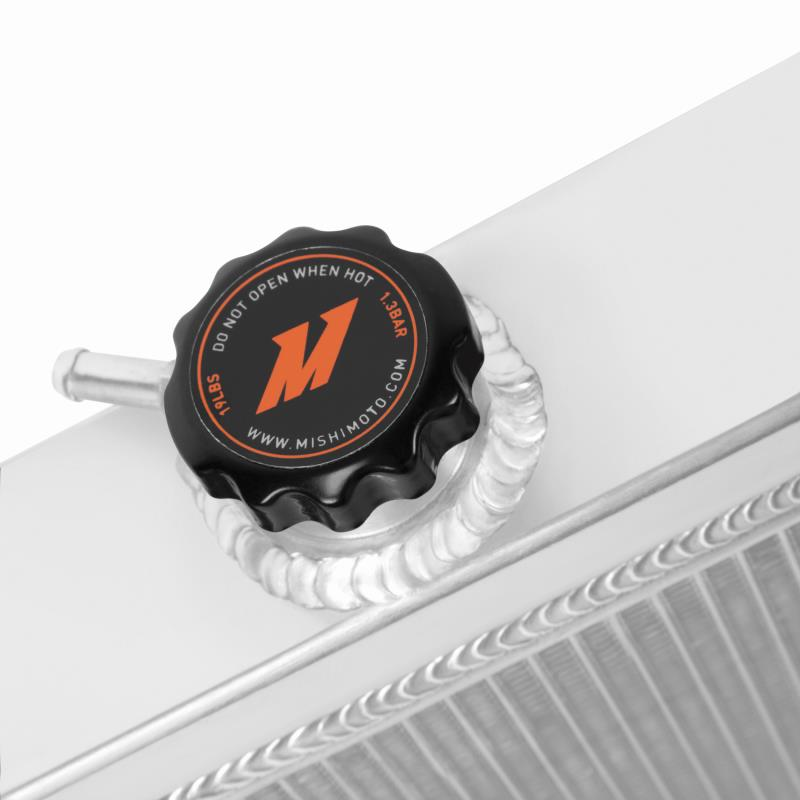

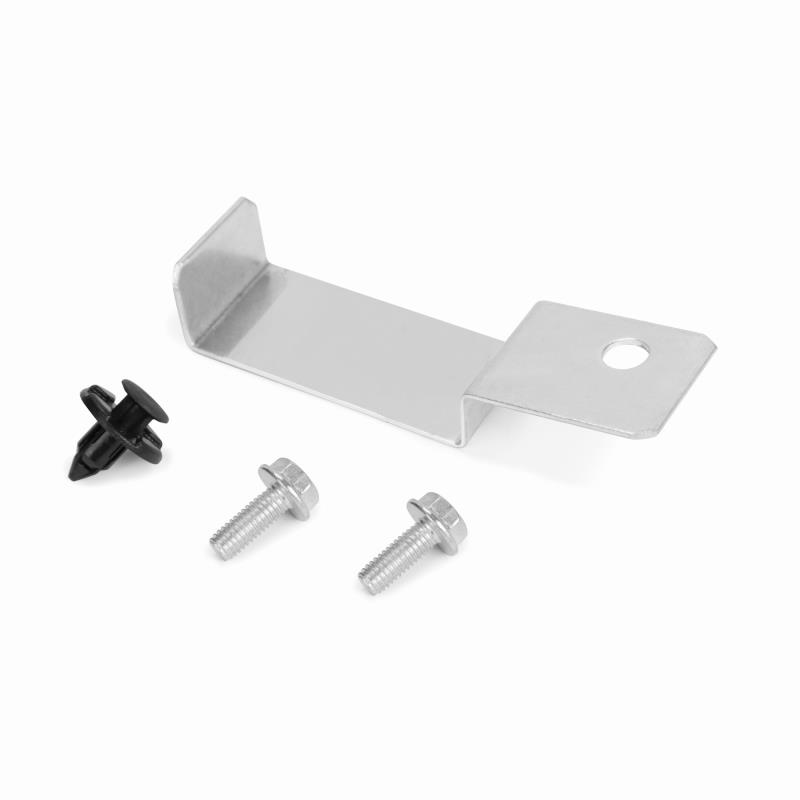

Includes magnetic drain plug with dowty seal, 1.3 bar high-pressure radiator cap, and upper radiator aluminium stay.



TECH INFO:

  • Material - Aluminum
  • Chassis Codes - CT9-A
  • Engine Codes - 4G63
  • Overall Height - 14"
  • Drain Plug Length - 1.5mm
  • Drain Plug Thread Size - M12
  • Overall Length - 19.5"
  • Tank Wall Thickness - 0.08"
  • Outlet - 1.38"
  • Rows - 3
  • Inlet - 1.38"
  • Coolant Capacity - 1.79
  • Dual Pass - No
  • Overall Width - 4.38"
  • Core Length - 13.38"
  • Core Height - 15.2"
  • Core Size - 13.38" x 15.2"
  • Core Thickness - 2.05"
  • Fill Neck - 1.5"

(MMRAD-EVO-01H)

SKU MMRAD-EVO-01H
Brand Mishimoto
Shipping Weight 5.0000kg
Shipping Width 0.170m
Shipping Height 0.400m
Shipping Length 0.600m
Shipping Cubic 0.040800000m3
