• Core Size: 400 x 205 x 120mm
  • Includes suitable Hood Splitter
  • Reduces Heatsoak compared the factory Intercooler



VERTI-COOLER ADVANTAGE

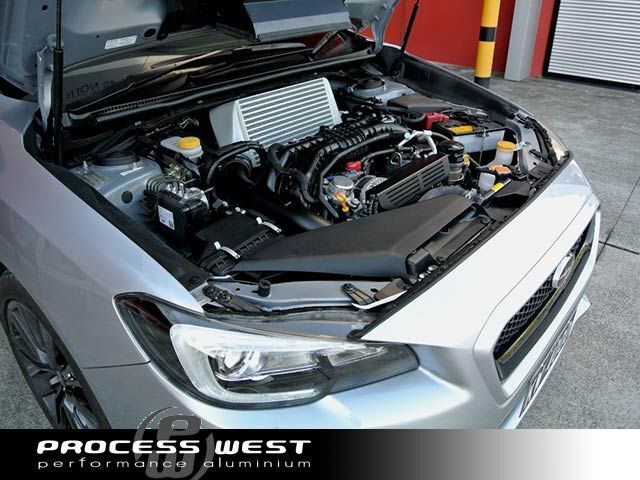

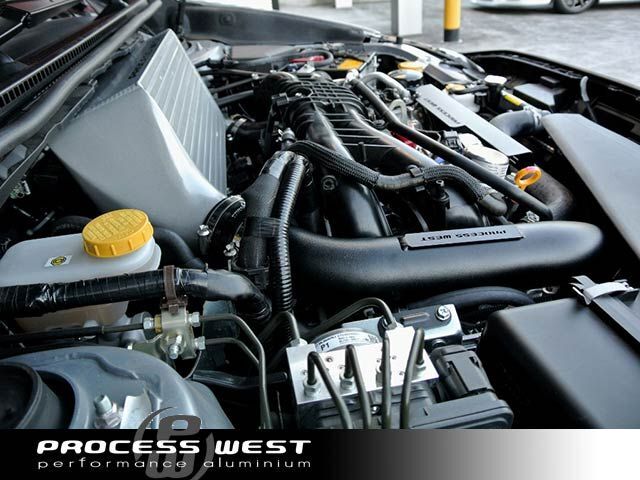

Verti-Cooler combines the advantages of a large and free-flowing Process West core (400mm flow length, 205mm stack height, 120mm thick) with a design that mounts the new intercooler at a 15 degree, near vertical angle in the engine bay. Packaged with a new hood duct design that force-feeds external airflow straight onto the intercooler fins, there is now a highly efficient air exit path courtesy of the Verti-Cooler mounting angle that flows all of this (now heated) air back down through the engine bay and out the underside of the car through the transmission tunnel for a shallow, cool, and low restriction exit-path. Compare then the near on 90 degree angle that the air must turn with the stock intercooler setup in place, and the advantages of the Process West Verti-Cooler design become clear. Verti-cooler also has the largest volume of any aftermarket intercooler for the Subaru WRX 08-16 and forester 08-12, with core measurements of 400mm flow length x 205mm stack height x 120mm thick.



SUPPLIED

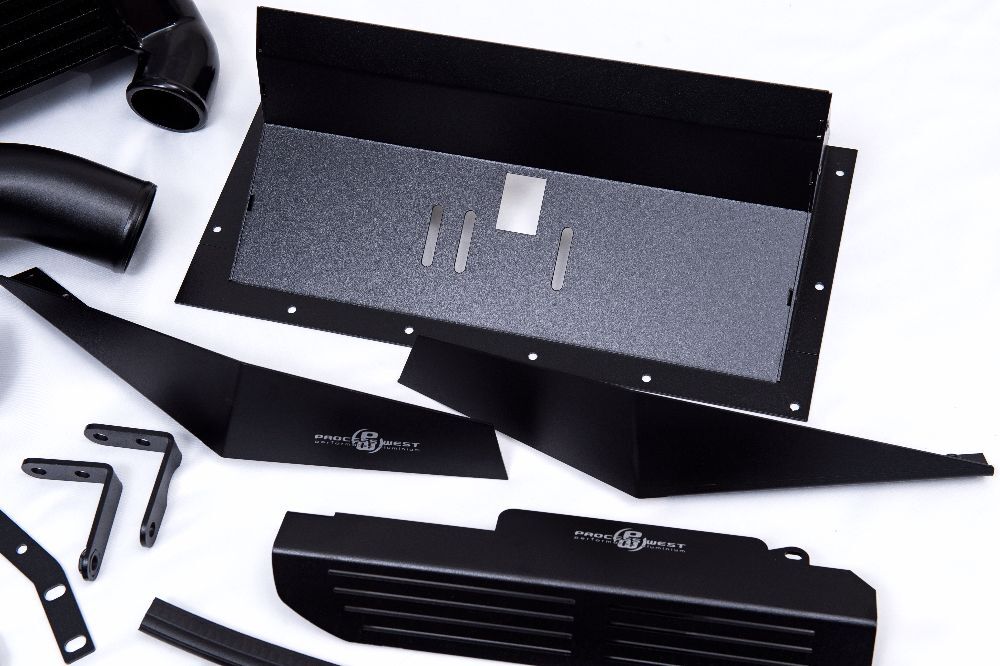

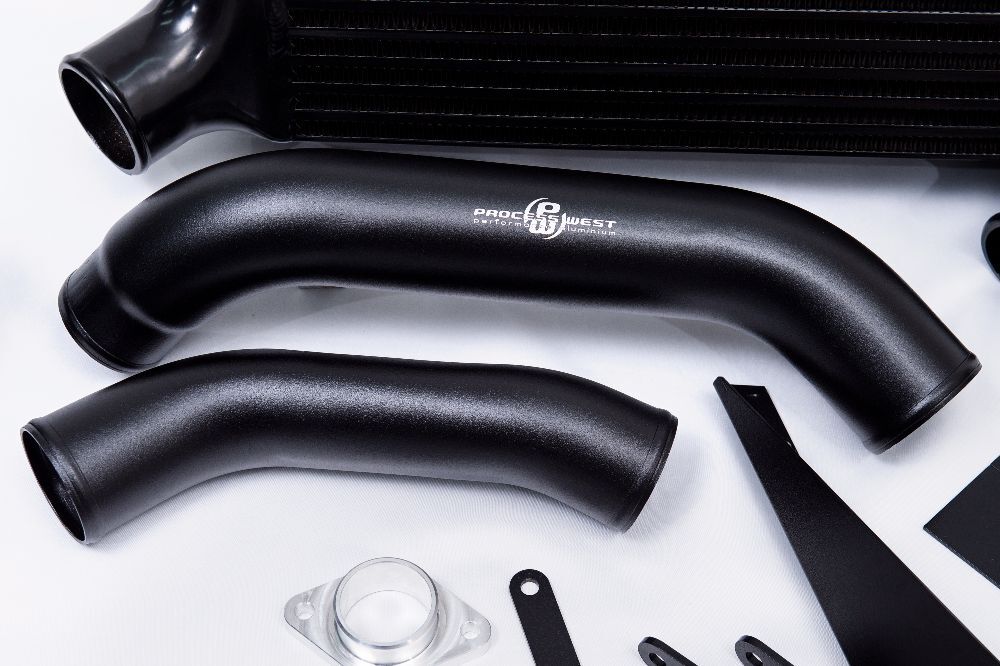

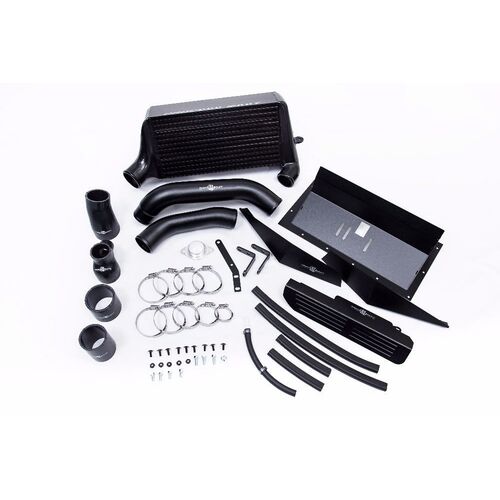

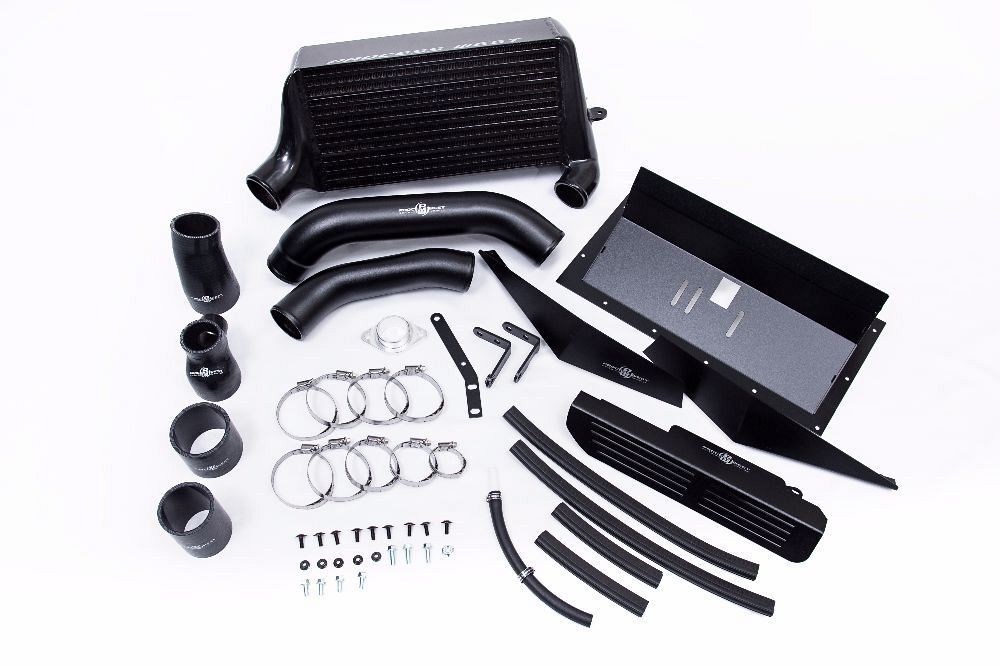

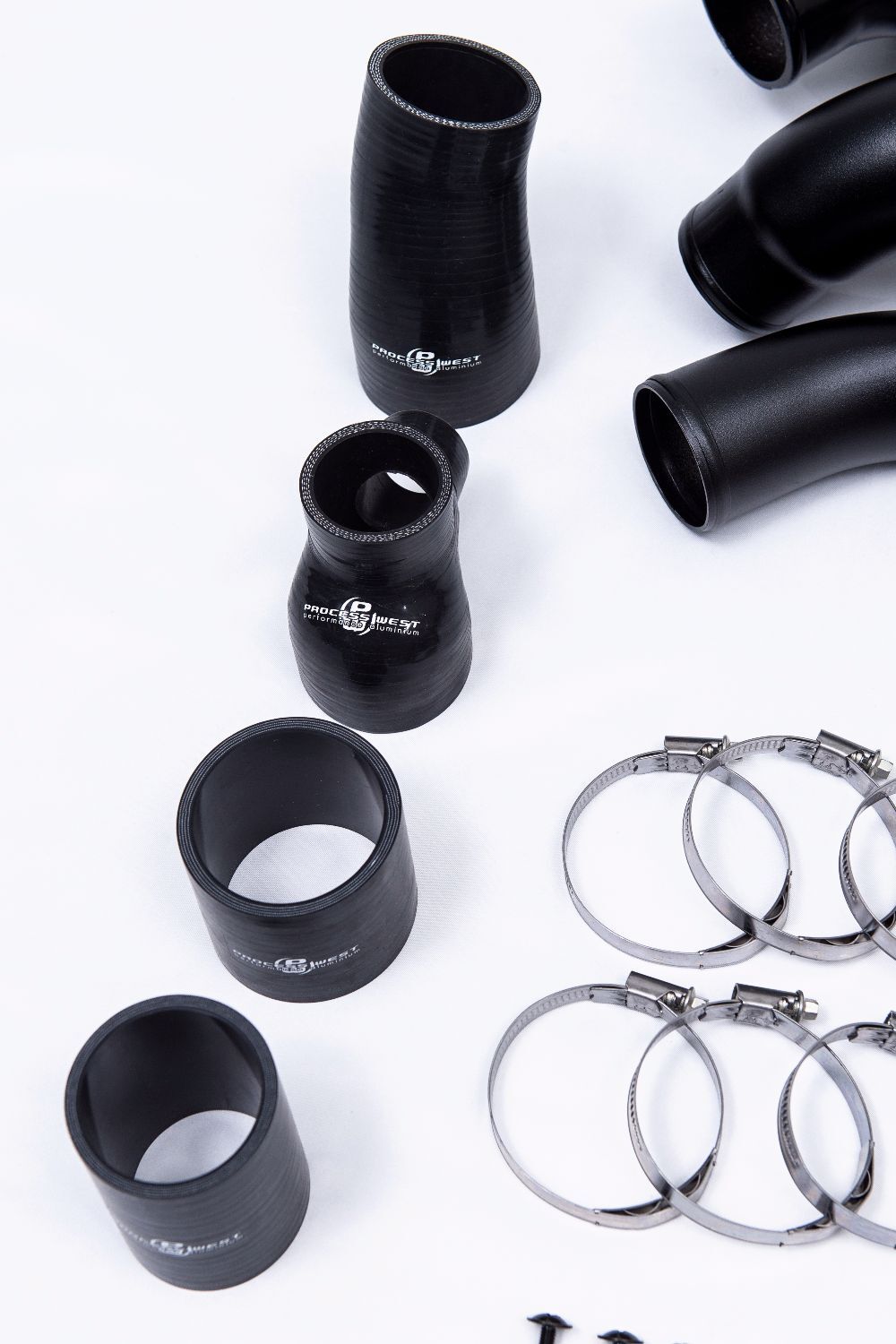

In true Process West fashion everything you need to fit the Verti-Cooler to your Subaru WRX or Forester comes in a complete package, including specially formed silicon hoses, high quality constant tension hose clamps, the Verti-Cooler intercooler body, and the matching under-hood air duct/splitter. There is also an optional silicone hose for Verti-Cooler that allows for direct fitment to traditional non-stock turbochargers. At the time of order you can specify whether you want your Verti-Cooler in a satin-black or silver finish.

(PWTMIC14B)

SKU PWTMIC14B
Brand Process West
Shipping Weight 15.0000kg
Shipping Width 0.800m
Shipping Height 20.000m
Shipping Length 0.400m
Shipping Cubic 6.400000000m3
