-4pc billet 6061 aluminum construction
-Black anodized and laser engraved
-10AN (5/8") equivalent flow rate
-Can be used on fuel feed or return line
-8 double FKM O-rings (primary and backup)
-Stainless steel metric hardware

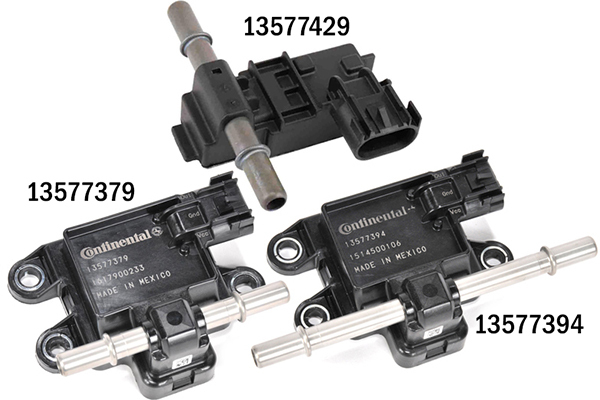

The Radium Engineering Split-Flow Flex Fuel Adapter was designed to be compatible with multiple sensors, as described below.
1. GM P/N: 13577429
NOTE: This sensor is the same found in AEM 30-2200 / 30-2201, ECU Master WHP, MaxxECU 1282, Fuel Tech 5005100353 / 5011100354, and Cobb Tuning kits.
2. GM P/N: 13577379
This sensor already has 3 useable mounting holes. The provided mount cannot be used.

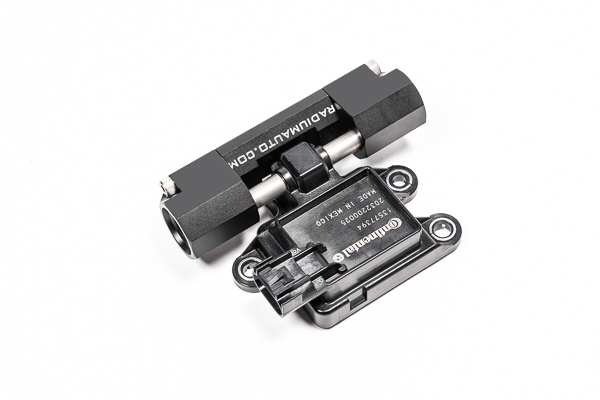

3. GM P/N: 13577394
NOTE: This sensor is the same found in the Haltech HT-011000 kit
This sensor already has 3 useable mounting holes. The provided mount cannot be used. For assembly, this sensor (shown above) requires a minor modification described in the instructions. http://data.radiumauto.com/PublicDocs/19-0278A.PDF
