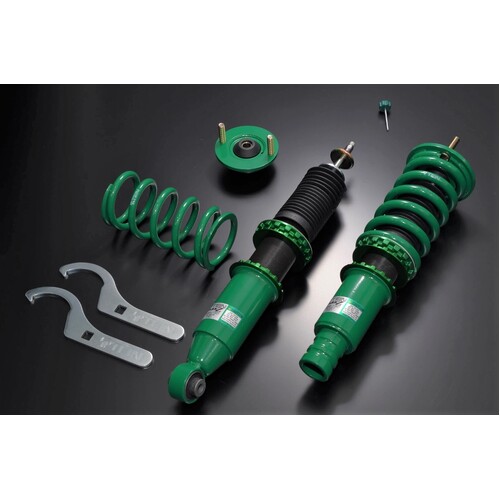

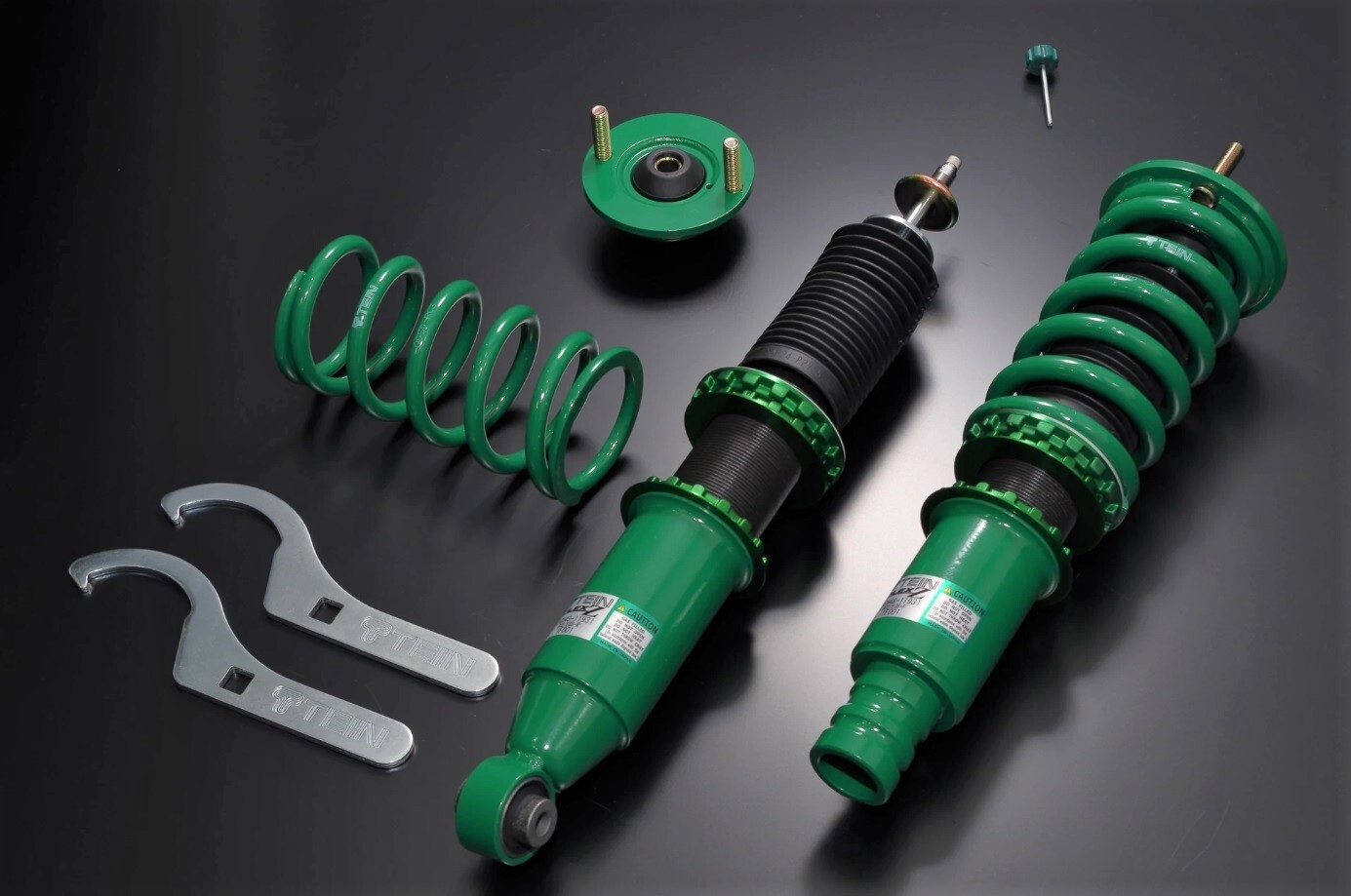

FLEX Z Coilover Suspension EG6 DB8 DC2

Part Number: VSH48-C1SS3 with eyelet style rear mounts.

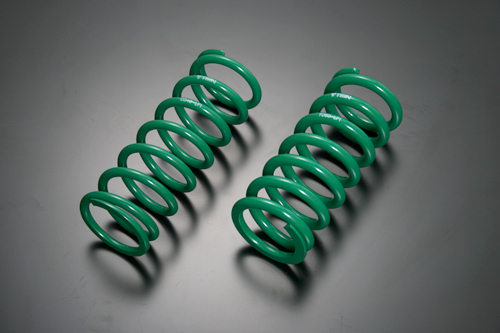

Spring Rate:
Front: 10.0K (175mm)
- Rear: 5.0K (175mm)


Stock Height Difference (mm):
Front: -40
- Rear: -40


Max Adjustability (mm):
Front: -78 ~ +12
- Rear: -112 ~ +3


Recommended Adjustability (mm):
Front: -50 ~ -30
- Rear: -50 ~ -30

Upper Mounts:
Front: Rubber
- Rear: Rubber

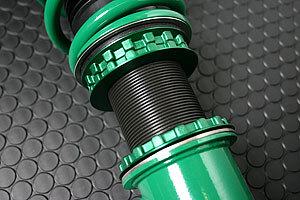

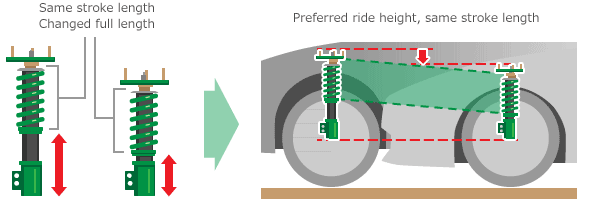

Full-Length Ride Height Adjustment Feature with Little or No Change in Ride Quality

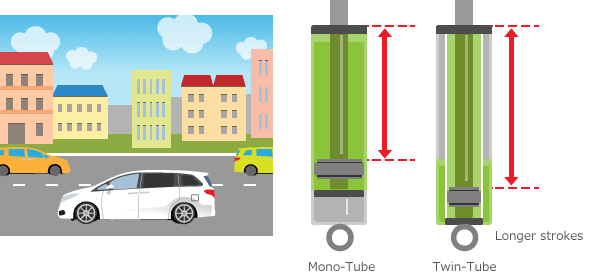

- Twin-Tube Structure for Low Resiliency & Securing Sufficient Stroke
- Damping Force Adjustment System, 16-level Linear Damping Force Adjustment System
- Complete Kit with Upper Mount Included (Except Some Models)
- 1-Full-Car-Kit complete Suspension Kit of 4 Shock Absorbers & 4 Springs


-Honda Civic EG6 B16A (07/1991-08/1995)
-Honda Integra DB8 B18C (09/1995-07/2001)
-Honda Integra DC2 B18C (09/1995-07/2001)

Note: The rear design is for eyelet style mounts, please check before placing an order as there are no refunds or credits given for incorrect choice.


Brand TEIN
Shipping Weight 25.0000kg
Shipping Width 0.450m
Shipping Height 0.370m
Shipping Length 0.670m
Shipping Cubic 0.111555000m3
