Product: FLEX Z Coilover Suspension CT9A CT9W
Part Number: VSR84-C1SS4

SPECIFICATIONS:

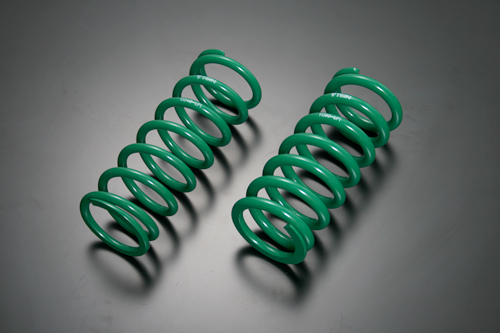

Springs Specifications:
Spring Rate:
- Front: 10.0K (200mm)
- Rear: 8,0K (200mm)

Stock Height Difference (mm):
- Front: -40
- Rear: -20

Max Adjustability (mm):
- Front: -97 ~ +2
- Rear: -70 ~ +26
Recommended Adjustability (mm):
- Front: -50 ~ -30
- Rear: -30 ~ -10

Upper Mounts:

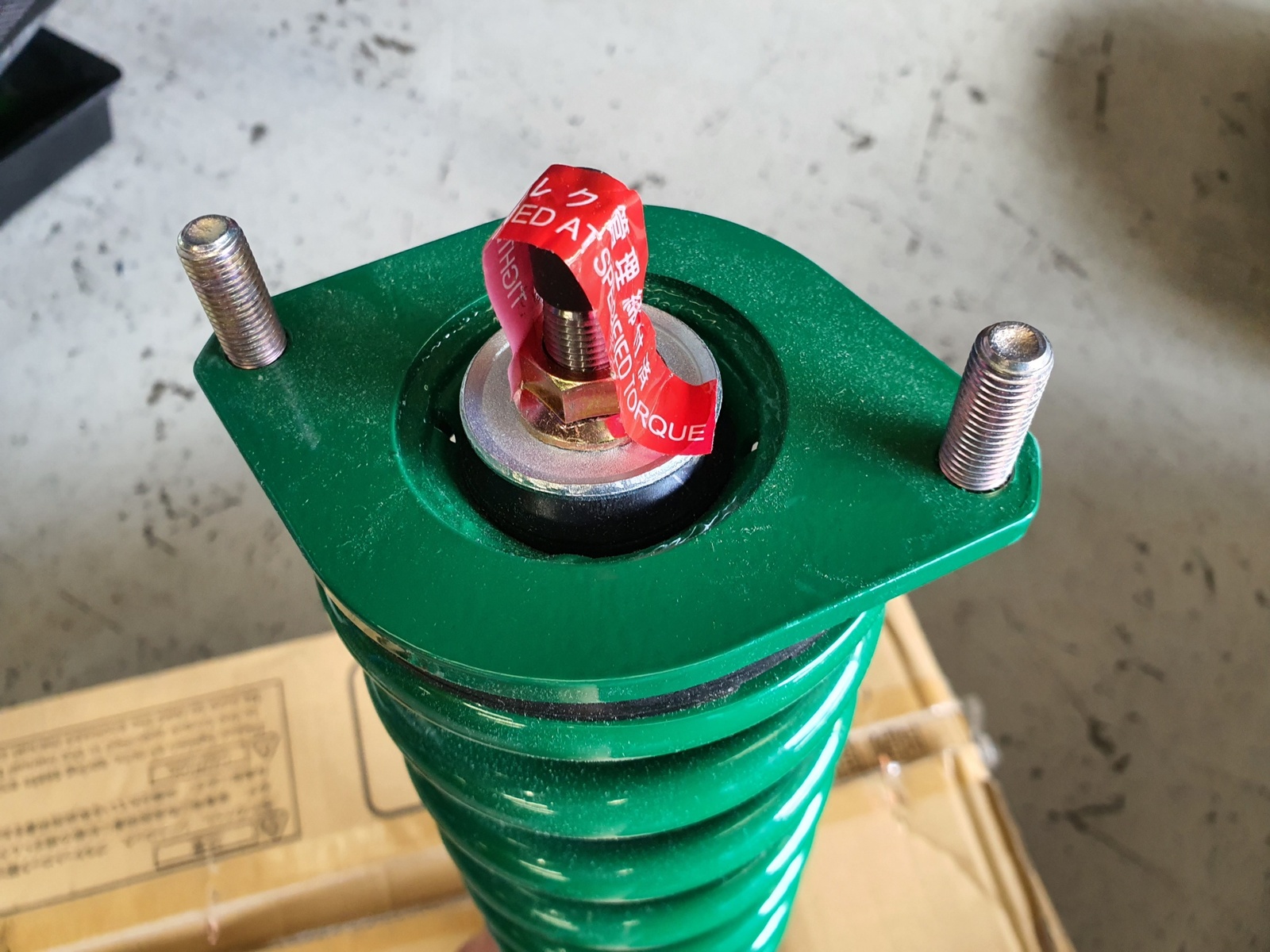

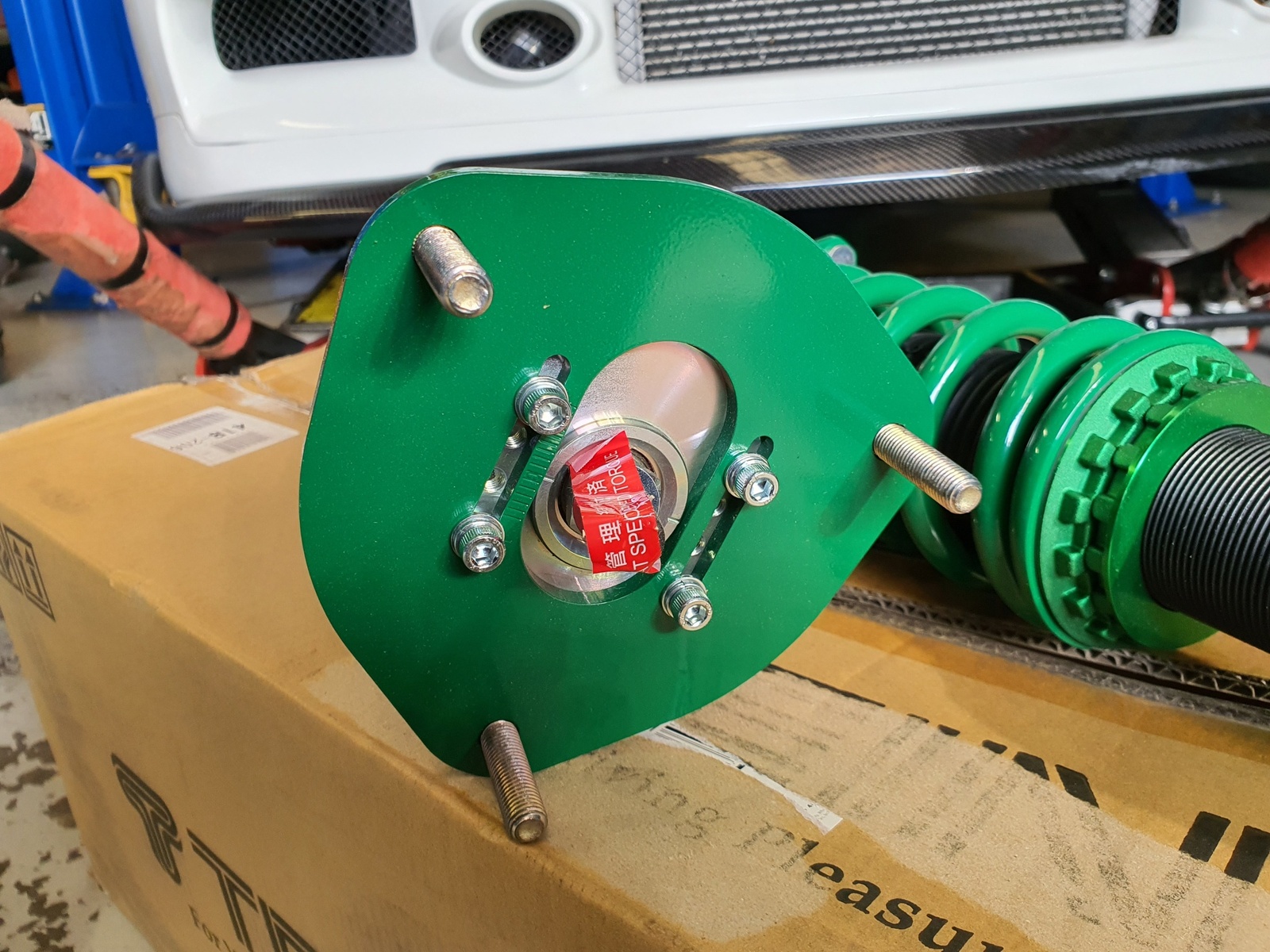

- Front: Camber Adjustment
- Rear: Rubber

FEATURES:

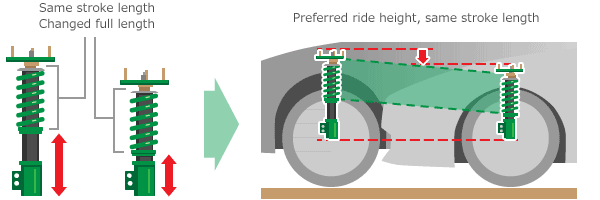

- Full-Length Ride Height Adjustment Feature with Little or No Change in Ride Quality

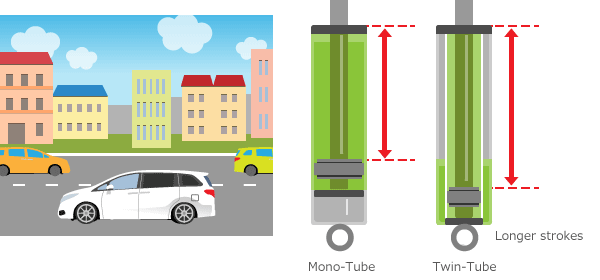

- Twin-Tube Structure for Low Resiliency & Securing Sufficient Stroke
- Damping Force Adjustment System, 16-level Linear Damping Force Adjustment System
- Complete Kit with Upper Mount Included (Except Some Models)
- 1-Full-Car-Kit complete Suspension Kit of 4 Shock Absorbers & 4 Springs

COMPATIBILITY

-Mitsubishi Lancer Evolution IX CT9A 4G63 (03/2005-03/2007)
-Mitsubishi Lancer Evolution VII CT9A 4G63 (02/2001-12/2002)
-Mitsubishi Lancer Evolution VIII CT9A 4G63 (01/2003-02/2005)
-Mitsubishi Lancer Evolution Wagon CT9W 4G63 (09/2003-12/2006)
