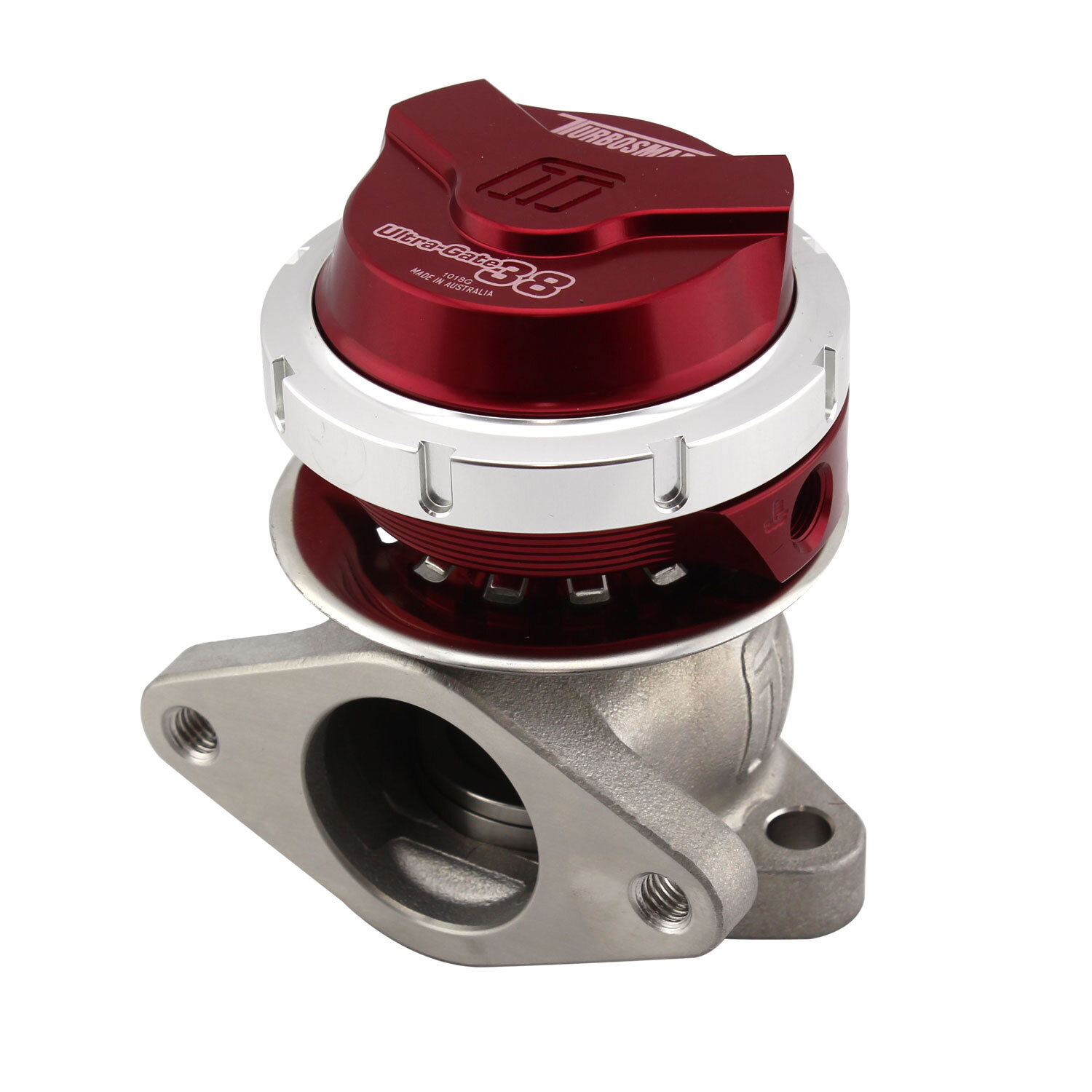

The Gen-V WG38 Ultra-Gate38 External Wastegate is a cost effective, high performing 38mm external wastegate designed for bolt on solutions where the 2-bolt flange is utilised.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

 A direct fit upgrade to all 4th-generation Turbosmart wastegates and features Turbosmart's unique collar-locking system, variable actuator cap and base, classic 2 bolt flanges (71mm spacing), liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.

Product features summary:

  • Liquid cooling provision
  • User adjustable actuator position
  • Modular actuator design
  • Suitable for 2 bolt flange applications (71 mm spacing).

Included in the Box:

  • Wastegate unit (pre-assembled with spring as per order)
  • SS316 Valve seat
  • WG38 SS manifold gaskets
  • Mounting Bolts and Nuts
  • Collar tool (master/slave)
  • 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
  • 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
  • Sticker
  • Instruction card



(TS-0551-1014)

SKU TS-0551-1014
Brand Turbosmart
Shipping Weight 0.5000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.004000000m3
