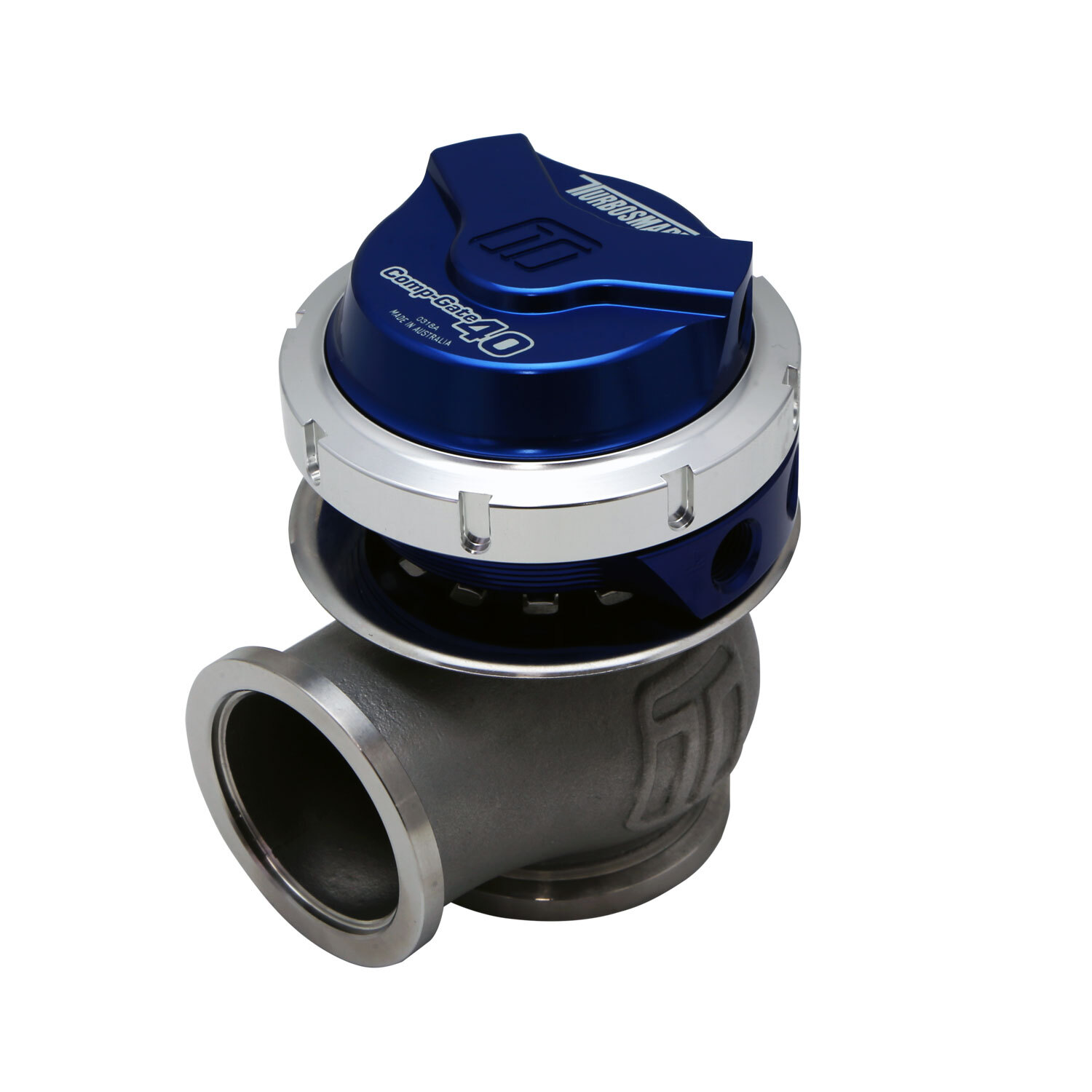

The Gen-V WG40 Comp-Gate40 external wastegate is a cost effective, high performing 40mm external wastegate.

The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature a unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.

Features:

  • Direct swap for Turbosmart Gen 4 Comp-Gate 40, inlet is the same as other 38/40mm V-band wastegates
  • 40mm valve size
  • High temp spring combinations from 3 – 26psi supplied in the box
  • 1/8”NPT ports
  • V-band clamp mounting system to suit 1-3/4” OD pipe
  • Locking collar for compact size and easy spring changes

What's in the Box?

  • Wastegate unit (pre-assembled with spring as per order)
  • SS316 Valve seat
  • Inlet V-Band
  • Inlet SS304 weld flange
  • Outlet V-Band
  • Outlet SS304 weld flange
  • Collar tool (master/slave)
  • 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
  • 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
  • Sticker
  • Instruction card.

(TS-0552-1001)

SKU TS-0552-1001
Brand Turbosmart
Shipping Weight 0.5000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.004000000m3
