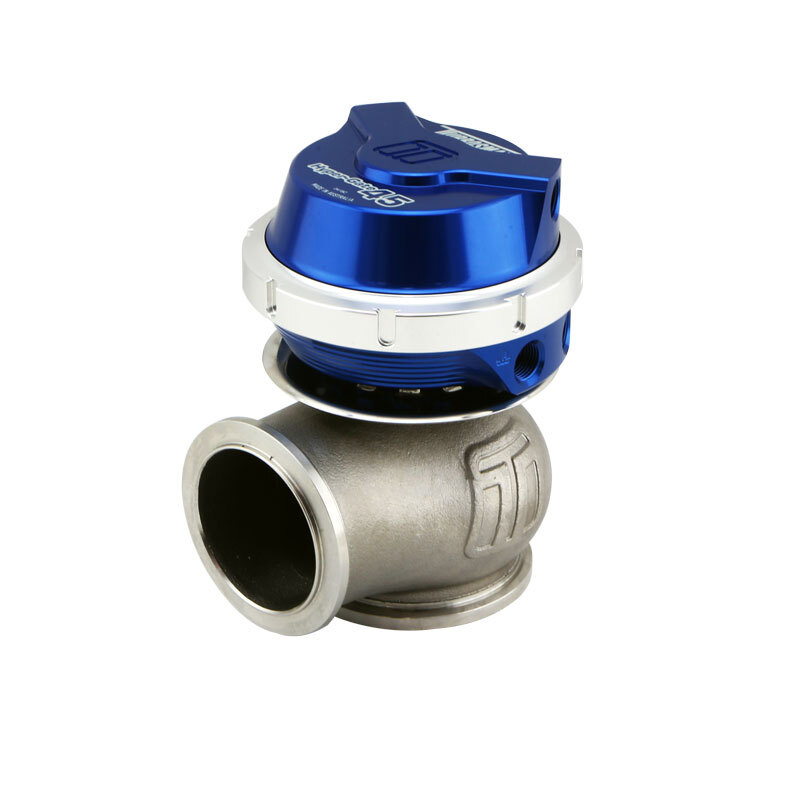

The Gen-V WG45 Hyper-Gate45 external wastegate is a cost effective, high performing 45mm external wastegate.
The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.
A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature a unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8″ NPT ports, and are provided with a range of springs.
Product features summary:
- Liquid cooling provision
- Strap type V-band clamps
- User adjustable actuator position
Included in the Box
- Wastegate unit (pre-assembled with spring as per order)
- SS316 Valve seat
- Inlet V-Band
- Inlet SS304 weld flange
- Outlet V-Band
- Outlet SS304 weld flange
- Collar tool (master/slave)
- 17/7 PH 3, 5, 7, 14 psi spring kit (1x spring installed)
- 4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples
- Instruction card
