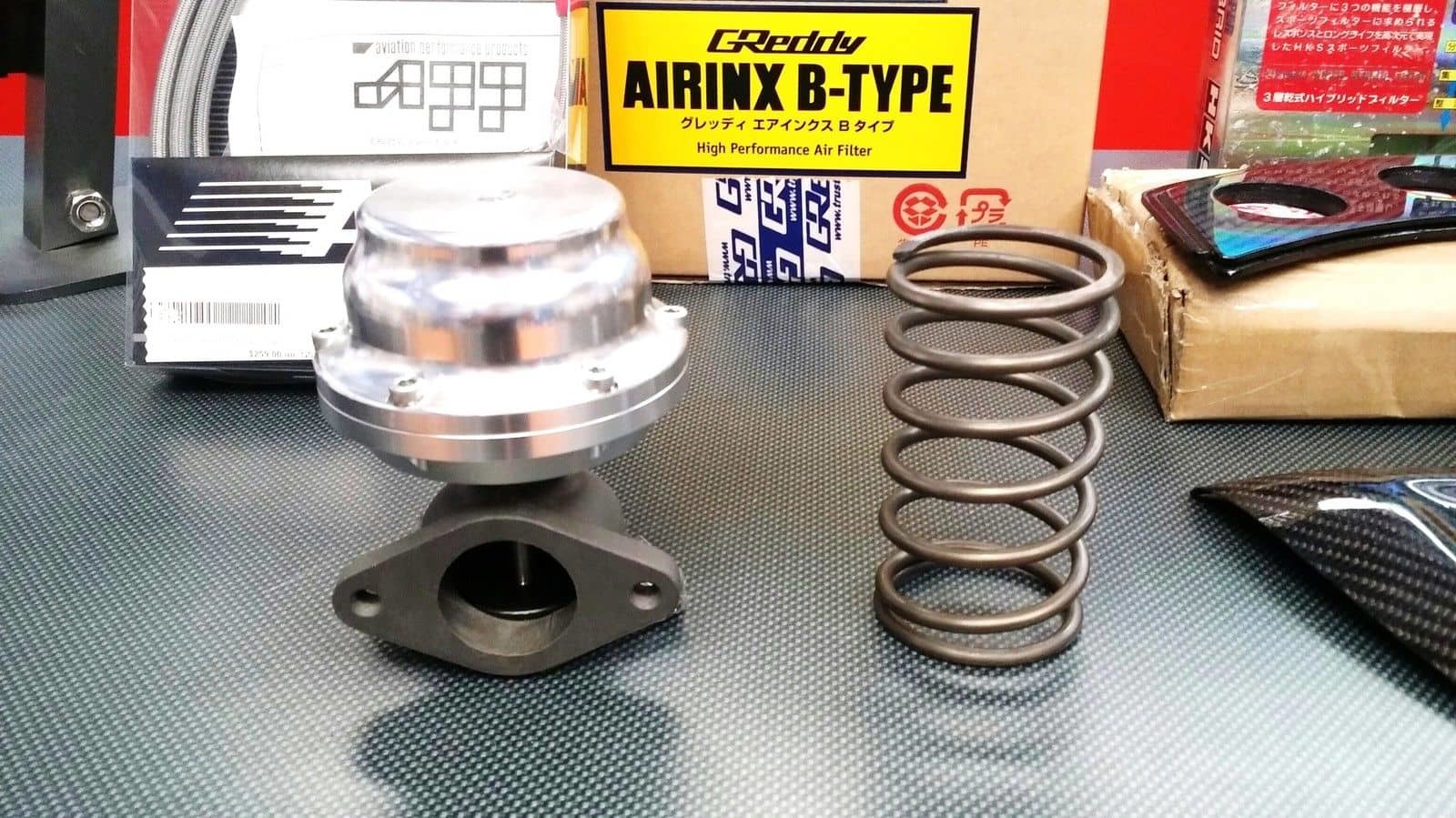

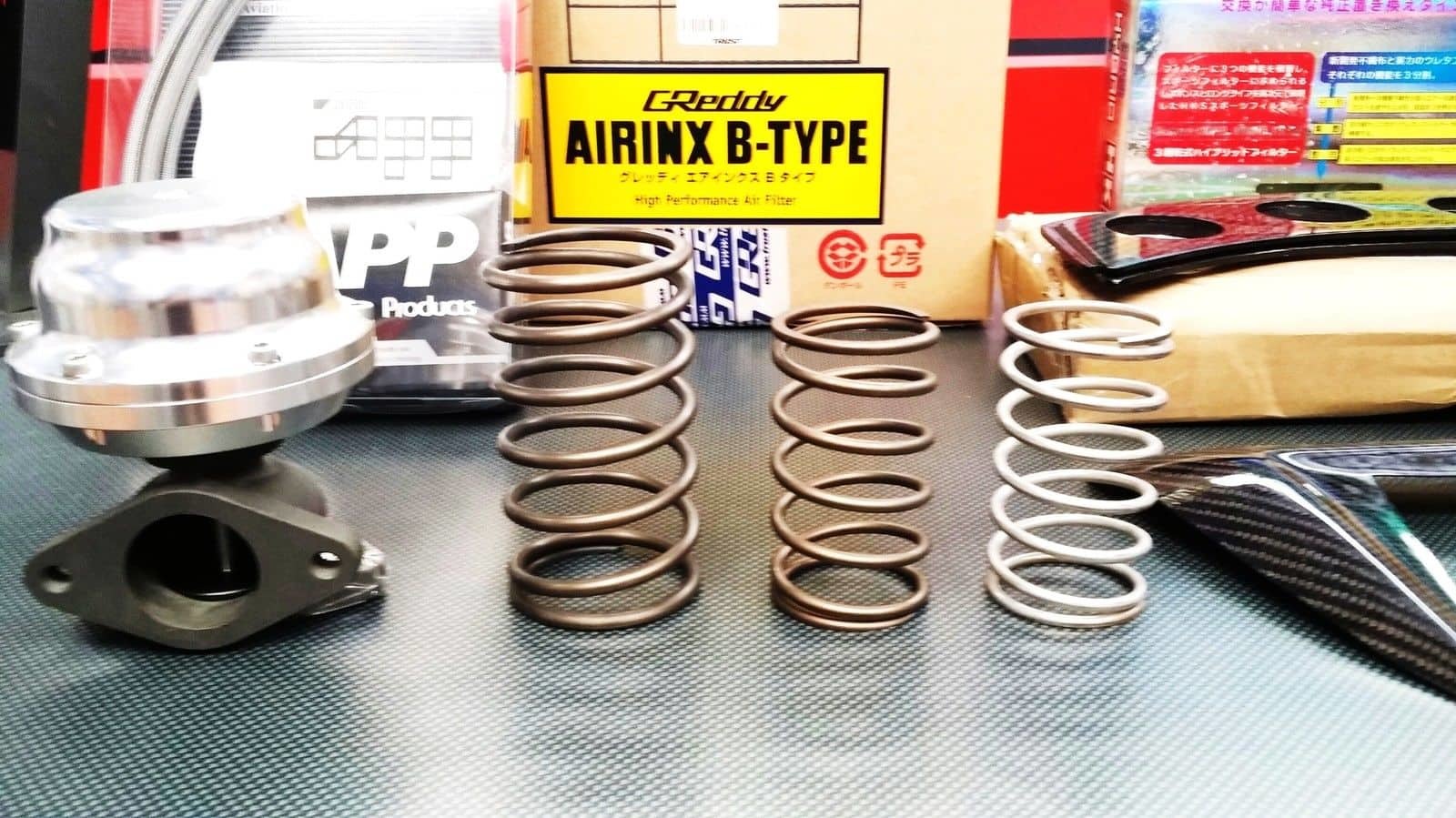

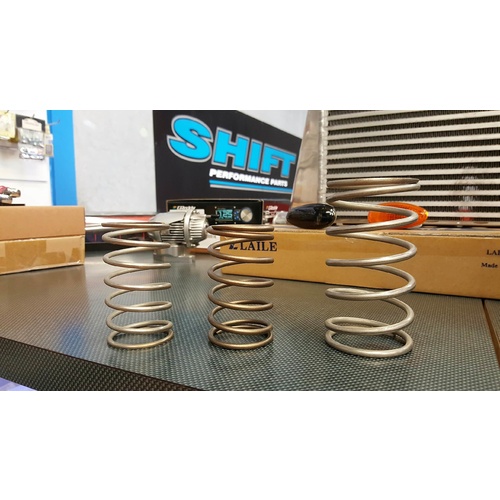

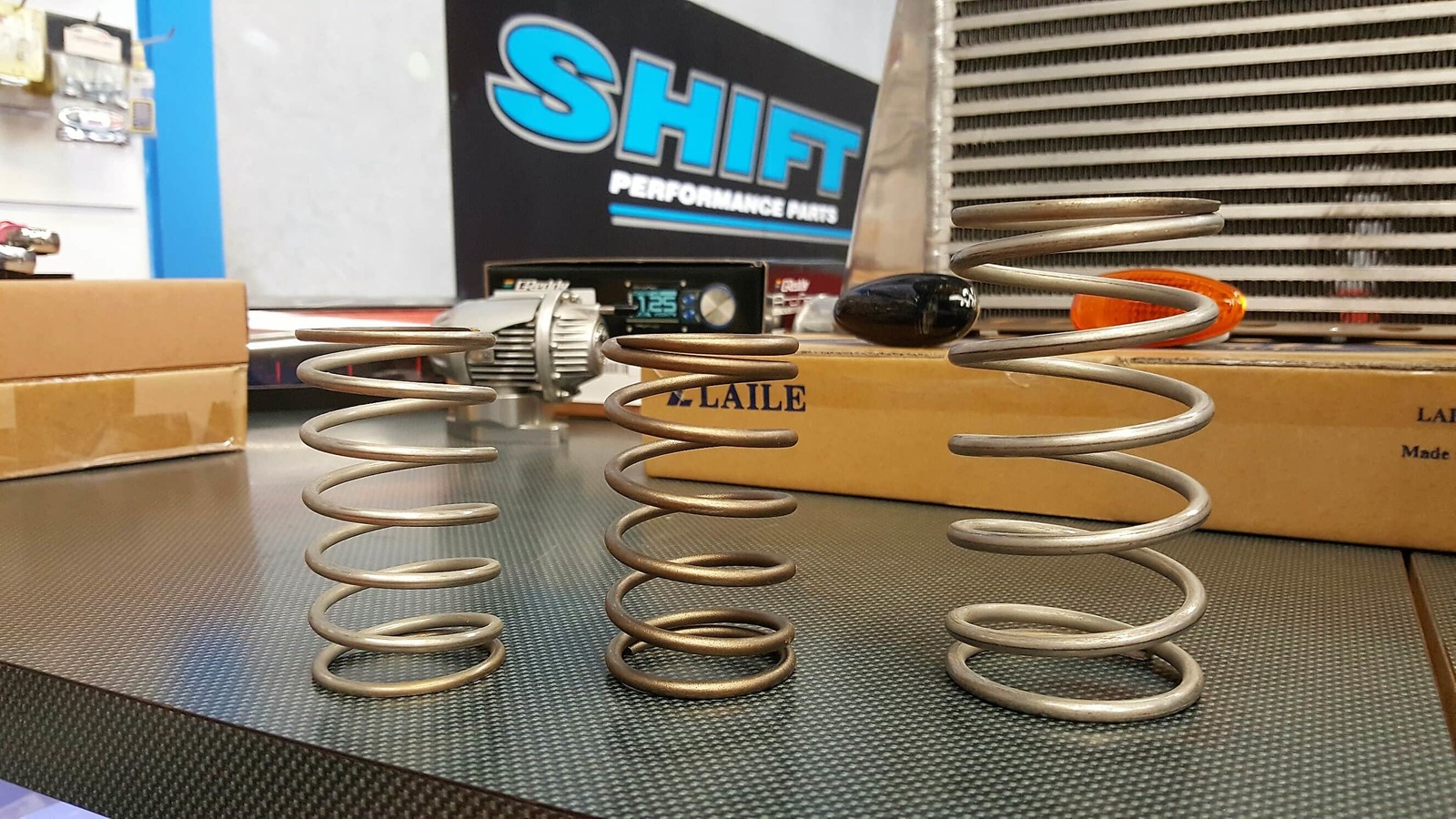

1 x  Metal Spring Pressure rating 0.4bar or 5.8PSI approx

Dimensions of spring 85.7mm x 48.5mm

Suits F38mm Tial style wastegates or any aftermarket wastegate with the same dimensions and fittings.

Will not fit MV-R or MV-S gates

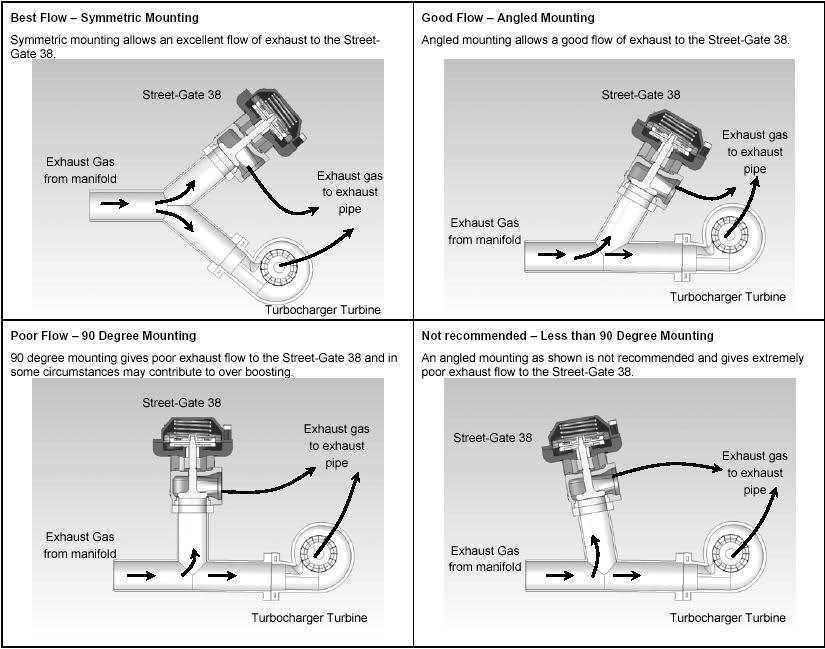

Note: If the positioning of the wastegate is not correct the minimum boost levels will be greater than what the spring is rated.

There may be a 2psi variance with new wastegate springs and the tension pressure will be more than what it is actually rated. The spring pressure tension will soften up once it has been exposed to heat over a period of time.


SKU 4SPR-04W-0100
Brand Zage Turbo Systems
Shipping Weight 0.5000kg
Shipping Width 0.220m
Shipping Height 0.130m
Shipping Length 0.100m
Shipping Cubic 0.002860000m3
