Part Number: MM022SD

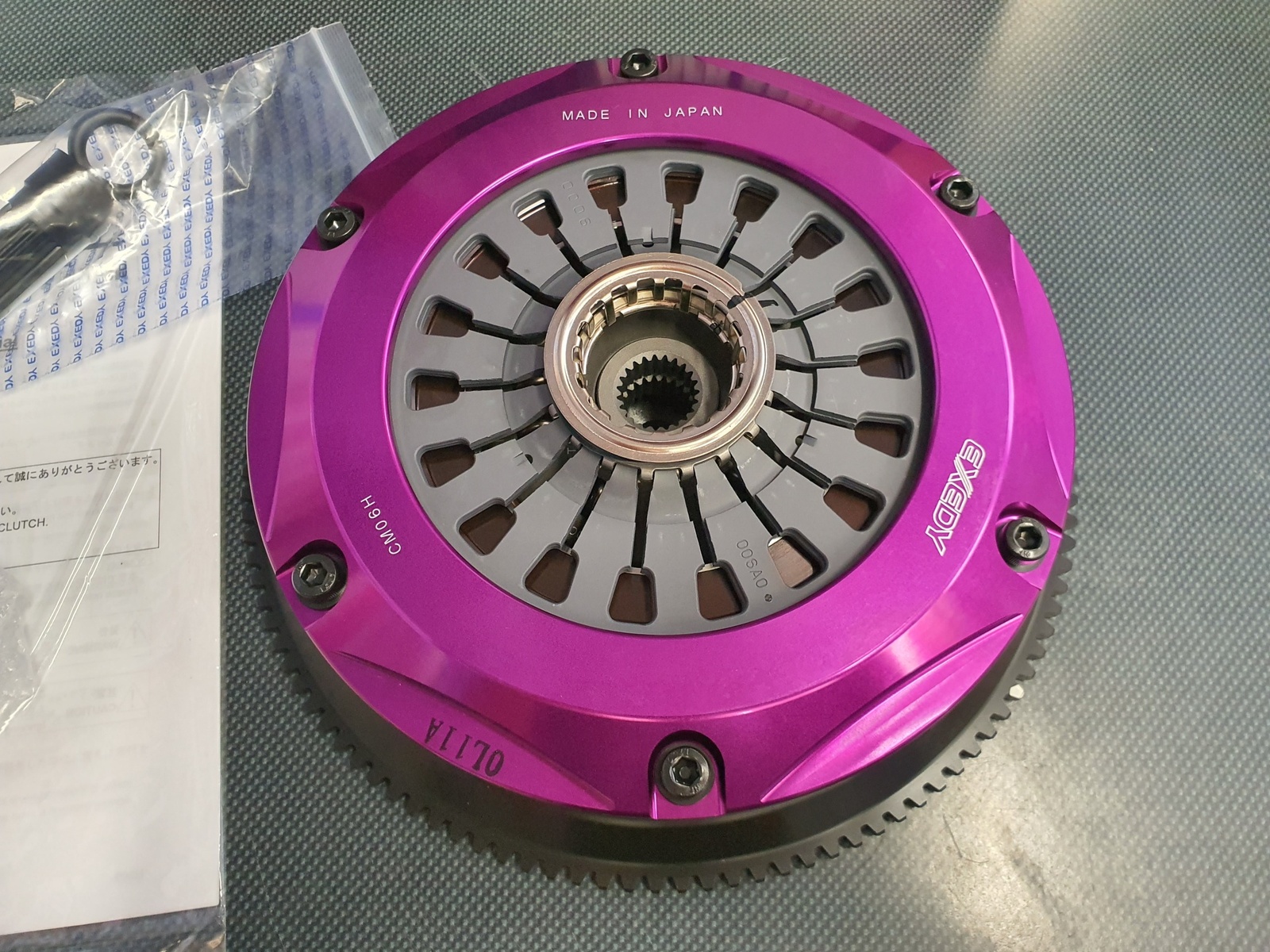

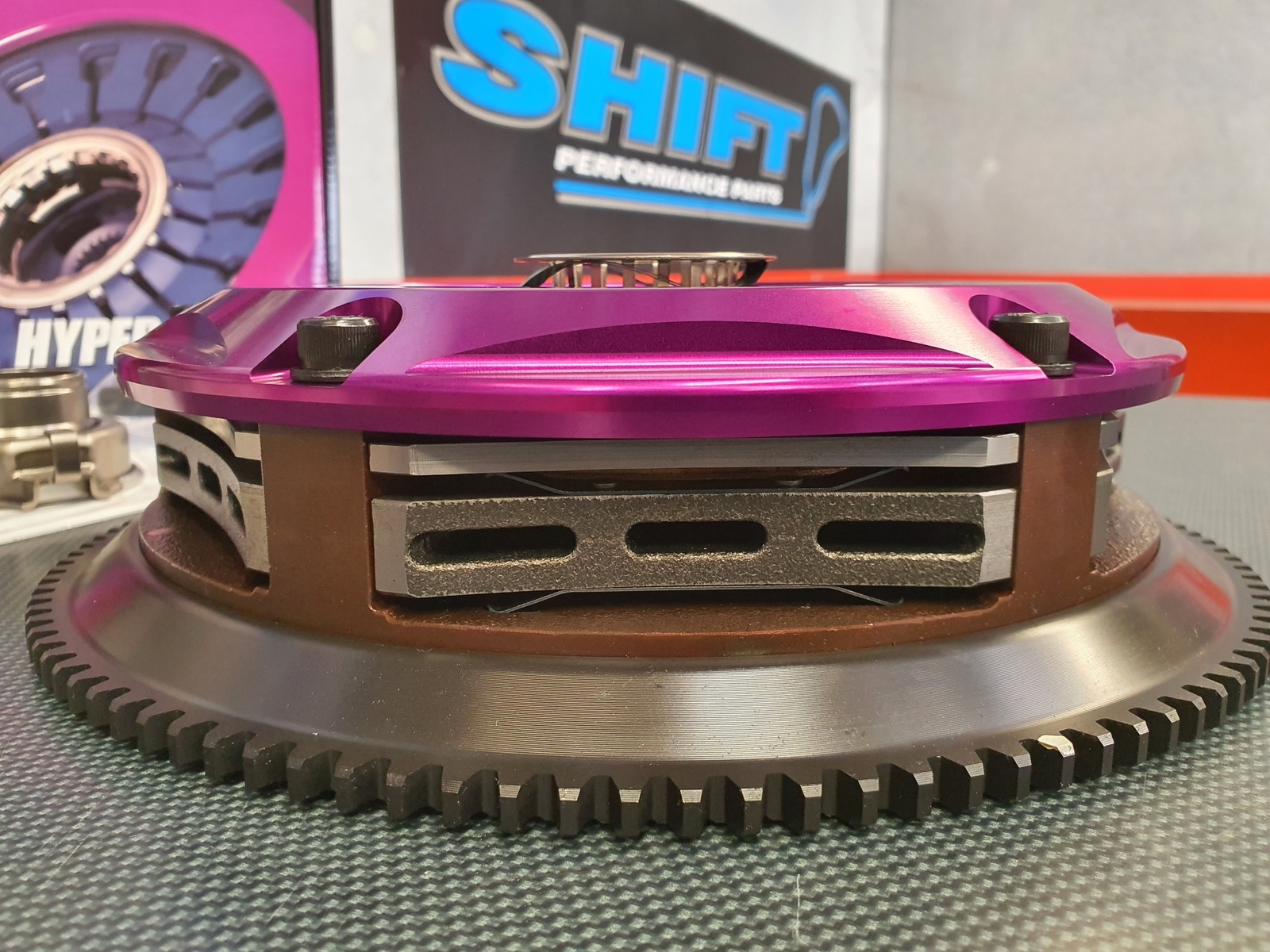

For high-powered applications EXEDY offers Multi plate clutches. These are designed for hot street action as well as drag, road, and rally racing. EXEDY comes with lightweight chromoly steel flywheel, and the famous purple anodized forged aluminium clutch cover. All have T5001 cerametallic friction materials for extreme heat resistance. The multi plate clutches are rated up to 800+ foot pounds of torque at the flywheel. And come with spring damper or solid discs depending on the application.

 Specs:

  • Disc Size 200mm
  • Spline Teeth / Major Dia 23T / 26.2mm
  • Clamping Force/Load 1000kg
  • Disc Material Ceramic
  • Number of Disc Twin
  • Type (Push/Pull) Pull
  • Sprung Center (D-core) Yes





(MM022SD)

SKU MM022SD
Brand EXEDY
Shipping Weight 15.3000kg
Shipping Width 0.430m
Shipping Height 0.200m
Shipping Length 0.320m
Shipping Cubic 0.027520000m3
